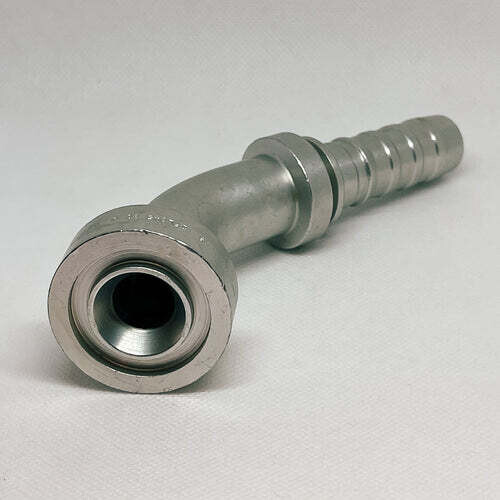

Hydraulic 45° Ell Fitting, 1"X1" CAT Flange

The 16GS-16FLC45 Hydraulic 45° Ell Fitting (1" x 1" CAT Flange) is a Gates® GlobalSpiral™ high-pressure 45° flange elbow coupling built for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. Its two-piece, no-skive design speeds up assembly by eliminating skiving—reducing labor, odor, fabrication errors, and fluid-system contamination—while delivering broad fitment flexibility through the GlobalSpiral end system. Designed to handle demanding hydraulic environments, GlobalSpiral thread ends are rated for working pressures up to 6,000 psi and are protected with TuffCoat plating for significantly improved corrosion resistance.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16GS-16FLC45
• Brand / Series: Gates® GlobalSpiral™
• Product Type: Hydraulic coupling / 45° flange elbow fitting
• Connection Type: CAT flange
• Nominal Size: 1" x 1" (Flange nominal size 1 in; hose ID 1 in)
• Design: Two-piece, no-skive
• Application: High-pressure, high-impulse spiral-wire hydraulic hose
• Max Working Pressure (System Capability): Up to 6,000 psi (GlobalSpiral thread ends)
• Corrosion Protection: TuffCoat plating (enhanced corrosion resistance)

Dimensions / Specs

• Flange Outside Diameter: 1.88 in
• Flange Thickness: 0.56 in
• Overall Length: 5.63 in
• Cutoff Length: 3.40 in
• Drop Length: 1.46 in

Ideal For

• Building or repairing spiral-wire hydraulic hose assemblies needing a 45° elbow at the flange connection
• Systems exposed to high pressure and high impulse duty cycles
• Shops wanting faster assembly and reduced contamination risk with a no-skive coupling design
• Applications where corrosion resistance is important (equipment outdoors, wash-down, corrosive environments)
• Hydraulic assemblies requiring 1" hose ID and 1" CAT flange geometry
