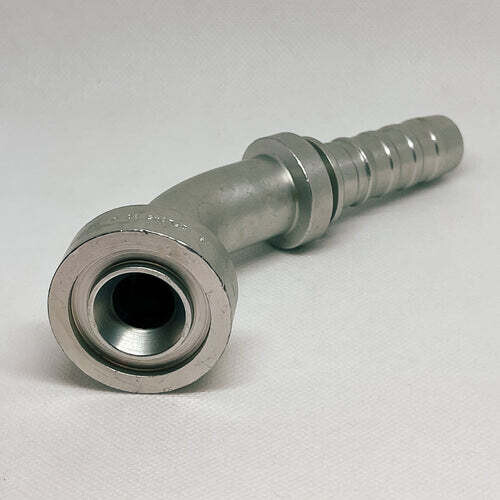

Hydraulic 45° Ell Fitting, 3/4"X1" CAT Flange

Hydraulic 45° Ell Fitting, 3/4"X1" CAT Flange

The 12GS-16FLC45 Hydraulic 45° Ell Fitting (3/4" x 1" CAT Flange) is a Gates® GlobalSpiral™ high-pressure 45° flange elbow coupling engineered for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. Its two-piece, no-skive design allows fast, tailor-made hose assemblies while eliminating skiving to reduce assembly time, labor, odor, fabrication errors, and contamination risk in fluid power systems. GlobalSpiral couplings offer broad application coverage across many configurations and are designed to handle working pressures up to 6,000 psi, while TuffCoat plating provides significantly enhanced corrosion resistance for harsh environments.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 12GS-16FLC45
• Brand / Series: Gates® GlobalSpiral™
• Product Type: Hydraulic coupling / 45° flange elbow fitting
• Connection Type: CAT flange
• Nominal Size: 3/4" x 1" (Hose ID 3/4 in; Flange nominal size 1 in)
• Design: Two-piece, no-skive
• Application: High-pressure, high-impulse spiral-wire hydraulic hose
• Max Working Pressure (System Capability): Up to 6,000 psi (GlobalSpiral thread ends)
• Corrosion Protection: TuffCoat plating (enhanced corrosion resistance)

Dimensions / Specs

• Flange Outside Diameter: 1.88 in
• Flange Thickness: 0.56 in
• Overall Length: 5.24 in
• Cutoff Length: 3.23 in
• Drop Length: 1.38 in

Ideal For

• Spiral-wire hydraulic hose assemblies needing a 45° elbow with CAT flange connection
• Hydraulic systems exposed to high pressure and high impulse duty cycles
• Shops wanting faster assembly and reduced contamination risk with a no-skive coupling design
• Outdoor or corrosive environments where TuffCoat plating helps extend service life
• Builds requiring 3/4" hose ID to a 1" CAT flange interface
