Hydraulic 45° Ell Fitting, 3/4"X1" Code 62 Flange

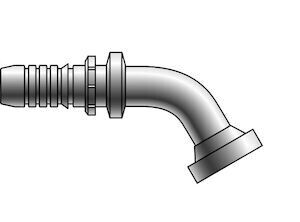

The 12GS-16FLH45 Gates® GlobalSpiral™ Hydraulic 45° Elbow Fitting is a 3/4" x 1" Code 62 flange coupling built for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. Its two-piece, no-skive design speeds assembly by eliminating skiving—reducing labor, assembly errors, odor, and contamination risk—while GlobalSpiral thread ends support working pressures up to 6,000 PSI. Finished with TuffCoat plating for corrosion resistance well beyond standard salt-spray specifications, it’s a durable option for demanding hydraulic systems.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 12GS-16FLH45
• Brand / Series: Gates® GlobalSpiral™
• Product Type: Hydraulic 45° elbow coupling / flange fitting
• Angle: 45° elbow
• Connection Type: Code 62 flange
• Size: 3/4" x 1" (Flange Nominal Size: 1 in)
• Max Working Pressure Capability: Up to 6,000 PSI (GlobalSpiral thread ends)
• Design: Two-piece, no-skive (reduces assembly time, labor, errors, and contamination)
• Corrosion Protection: TuffCoat plating (enhanced corrosion resistance)
• Flange Outside Diameter: 1.88 in
• Flange Thickness: 0.38 in
• Hose ID: 3/4 in
• Overall Length: 5.12 in
• Cutoff Length: 3.11 in
• Drop Length: 1.26 in

Ideal For

• High-pressure hydraulic hose assemblies needing a 45° Code 62 flange connection
• Spiral-wire hose systems with high impulse demands
• Shops wanting faster builds with a no-skive coupling design
• Applications where reducing contamination risk and improving corrosion resistance matters
• Systems requiring 3/4" hose ID with a 1" Code 62 flange interface
