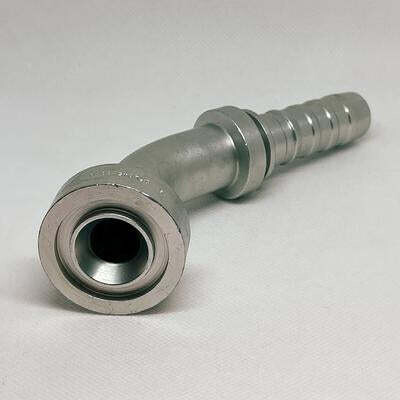

Hydraulic 45° Ell Fitting, 3/4"X3/4" CAT Flange

The 12GS-12FLC45 Hydraulic 45° Ell Fitting is a high-pressure CAT flange 45° elbow coupling built for spiral-wire hydraulic hose assemblies where high impulse performance and dependable sealing are required. Part of the Gates® GlobalSpiral™ system, it features a two-piece, no-skive design for faster assembly and reduced contamination risk, and is finished with TuffCoat™ plating for enhanced corrosion resistance in demanding environments.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 12GS-12FLC45
• Brand / Series: Gates® GlobalSpiral™
• Product Type: Hydraulic 45° elbow fitting / coupling (CAT flange)
• Hose ID: 3/4"
• Flange Nominal Size: 3/4"
• Flange Outside Diameter: 1.63"
• Flange Thickness: 0.56"
• Overall Length: 5.24"
• Cutoff Length: 3.23"
• Drop Length: 1.38"
• Design: Two-piece, no-skive coupling for faster, cleaner assembly
• Corrosion Protection: TuffCoat™ plating for increased corrosion resistance
• Pressure Capability (Series): GlobalSpiral™ thread ends rated for up to 6,000 psi (application dependent)

Ideal For

• Extremely high-pressure, high-impulse spiral-wire hydraulic hose applications
• CAT flange systems needing a 3/4" flange with a 45° elbow for smoother routing
• Assemblies where no-skive construction helps cut labor time and reduce errors
• Equipment operating in harsh conditions where corrosion resistance is important
• Layouts where a 45° fitting reduces hose bend stress and improves hose life
