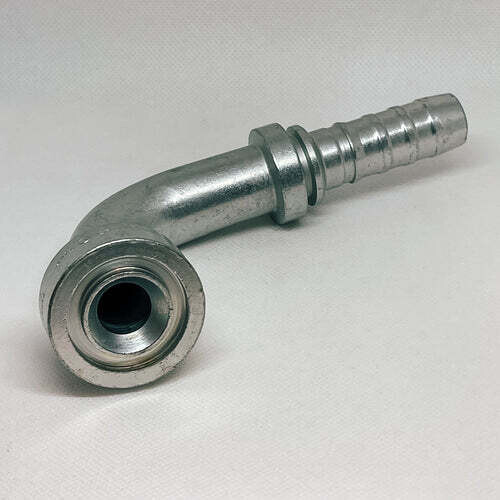

Hydraulic 90° Ell Fitting, 1"X1-1/4" CAT Flange

The 16GS-20FLC90 Hydraulic 90° Ell Fitting (1" hose ID × 1-1/4" CAT flange) is a high-performance Gates® GlobalSpiral 90-degree flange coupling designed for extremely high-pressure, high-impulse spiral-wire hydraulic hose assemblies. Its two-piece, no-skive design helps speed assembly while reducing contamination risk, and it uses TuffCoat plating for enhanced corrosion resistance in demanding environments.

Country of Origin: Varies by production batch

Key Features / Specifications

• Model / Part Number: 16GS-20FLC90
• Brand / Series: Gates® GlobalSpiral
• Product Type: Hydraulic 90° elbow flange coupling
• Hose ID: 1"
• Flange Nominal Size: 1-1/4" (CAT flange)
• Design: Two-piece, no-skive coupling for faster assembly and reduced errors/contamination
• Pressure Capability (Series): GlobalSpiral thread ends rated up to 6,000 psi (application dependent)
• Plating: TuffCoat (enhanced corrosion resistance)

Dimensions / Measurements

• Flange Outside Diameter: 2.13 in
• Flange Thickness: 0.56 in
• Overall Length: 5.16 in
• Cutoff Length: 2.92 in
• Drop Length: 2.91 in

Ideal For

• Building or replacing high-pressure hose assemblies using 1" spiral-wire hydraulic hose
• Applications needing a 90° CAT flange connection in tight routing areas
• Fleet and equipment service where no-skive fittings help reduce assembly time and contamination
• Harsh environments where improved corrosion resistance (TuffCoat) helps extend service life
