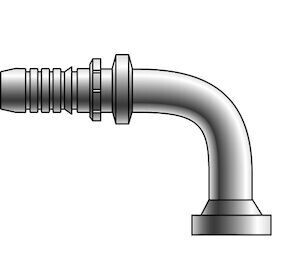

Hydraulic 90° Ell Fitting, 1"X1-1/4" Code 62 Flange

The 16GS-20FLH90 Hydraulic 90° Ell Fitting (1" x 1-1/4" Code 62 Flange) is a Gates® GlobalSpiral™ high-pressure 90° flange elbow coupling engineered for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. Its two-piece, no-skive design enables fast, tailor-made hose assemblies while eliminating skiving to reduce labor, odor, assembly errors, and contamination risk in fluid power systems. GlobalSpiral thread ends support broad application coverage across many configurations and are designed to handle working pressures up to 6,000 psi, while TuffCoat plating delivers significantly enhanced corrosion resistance for harsh operating environments.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16GS-20FLH90
• Brand / Series: Gates® GlobalSpiral™
• Product Type: Hydraulic coupling / 90° flange elbow fitting
• Flange Type: Code 62 flange
• Nominal Size: 1" x 1-1/4" (Hose ID 1 in; Flange nominal size 1-1/4 in)
• Design: Two-piece, no-skive
• Application: High-pressure, high-impulse spiral-wire hydraulic hose
• Max Working Pressure (System Capability): Up to 6,000 psi (GlobalSpiral thread ends)
• Corrosion Protection: TuffCoat plating (enhanced corrosion resistance)

Dimensions / Specs

• Flange Outside Diameter: 2.13 in
• Flange Thickness: 0.41 in
• Overall Length: 5.28 in
• Cutoff Length: 3.02 in
• Drop Length: 3.54 in

Ideal For

• Spiral-wire hydraulic hose assemblies needing a 90° elbow with Code 62 flange connection
• Systems exposed to high pressure and high impulse duty cycles (construction, ag, industrial hydraulics)
• Shops wanting faster assembly and reduced contamination risk with a no-skive coupling design
• Equipment operating in corrosive or outdoor environments where TuffCoat plating helps extend service life
• Hydraulic builds requiring 1" hose ID to a 1-1/4" Code 62 flange interface
