Hydraulic 90° Ell Fitting, 1"X1" Code 62 Flange

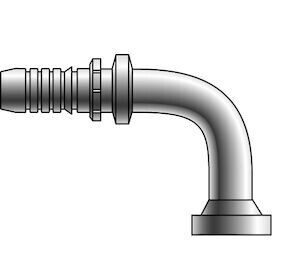

The 16GS-16FLH90 Gates® GlobalSpiral Hydraulic 90° Elbow Fitting is a heavy-duty Code 62 flange coupling designed for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications with working pressures up to 6,000 PSI. Its two-piece, no-skive design supports fast, clean hose assembly by eliminating skiving to reduce labor time, fabrication errors, odors, and contamination of the fluid power system. Built for severe-duty environments, it features TuffCoat™ plating that delivers over five times the corrosion resistance of SAE ASTM B117 specifications for long-lasting performance in demanding hydraulic systems.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16GS-16FLH90
• Brand / Series: Gates® GlobalSpiral
• Product Type: Hydraulic 90° elbow flange fitting / coupling
• Connection Type: Code 62 Flange x Hose, 90 Degree
• Working Pressure: Up to 6,000 PSI
• Design: Two-piece, no-skive coupling
• Flange Nominal Size: 1 in
• Flange Outside Diameter: 1.88 in
• Flange Thickness: 0.38 in
• Hose Inside Diameter (ID): 1 in
• Overall Length: 5.31 in
• Cutoff Length: 3.09 in
• Drop Length: 2.76 in
• Finish: TuffCoat™ plated
• Corrosion Resistance: >5× SAE ASTM B117 specification
• System Coverage: Part of a GlobalSpiral system with 80+ configurations

Ideal For

• High-pressure hydraulic systems requiring up to 6,000 PSI
• Spiral-wire hose assemblies in industrial and mobile equipment
• Applications needing 90° hose routing for tight clearances and reduced bend stress
• Environments requiring enhanced corrosion protection
• Assembly work where no-skive installation improves speed and consistency
