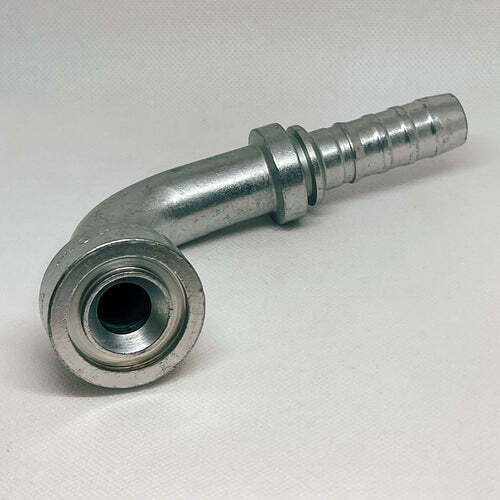

Hydraulic 90° Ell Fitting, 3/4"X1" CAT Flange

The 12GS-16FLC90 Hydraulic 90° Ell Fitting is a high-pressure CAT flange 90° elbow coupling designed for spiral-wire hydraulic hose assemblies in extremely high-pressure, high-impulse applications. Part of the Gates® GlobalSpiral™ system, it features an innovative two-piece, no-skive design to speed assembly and reduce contamination risk, and it’s finished with TuffCoat™ plating for enhanced corrosion resistance in harsh environments.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 12GS-16FLC90
• Brand / Series: Gates® GlobalSpiral™
• Product Type: Hydraulic 90° elbow fitting / coupling (CAT flange)
• Hose ID: 3/4"
• Flange Nominal Size: 1"
• Flange Outside Diameter: 1.88"
• Flange Thickness: 0.56"
• Overall Length: 4.61"
• Cutoff Length: 2.6"
• Drop Length: 2.68"
• Design: Two-piece, no-skive coupling for faster, cleaner assembly
• Corrosion Protection: TuffCoat™ plating for increased corrosion resistance
• Pressure Capability (Series): GlobalSpiral™ thread ends rated for up to 6,000 psi (application dependent)

Ideal For

• Extremely high-pressure, high-impulse spiral-wire hydraulic hose applications
• CAT flange systems needing a 1" flange with a 90° elbow for tight routing
• Assemblies where no-skive construction helps reduce labor and fabrication errors
• Equipment operating in harsh conditions where corrosion resistance is critical
• Layouts where a 90° fitting reduces hose bend stress and improves hose life
