Hydraulic 90° Ell Fitting, 3/4"X1" Code 62 Flange

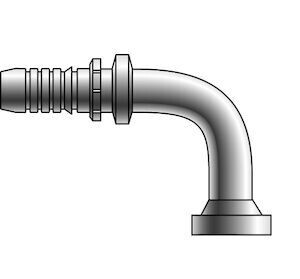

The 12GS-16FLH90 Hydraulic 90° Ell Fitting is a high-pressure Code 62 flange elbow built for spiral-wire hydraulic hose assemblies where strength, impulse resistance, and corrosion protection matter. Part of the Gates® GlobalSpiral™ system, it features a two-piece, no-skive design to speed assembly and help reduce fabrication errors and contamination risks, while the TuffCoat™ plating delivers enhanced corrosion resistance for demanding field and shop environments.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 12GS-16FLH90
• Brand / Series: Gates® GlobalSpiral™
• Product Type: Hydraulic 90° elbow fitting (Code 62 flange)
• Hose ID: 3/4"
• Flange Nominal Size: 1"
• Flange Type / Standard: Code 62 flange
• Flange Outside Diameter: 1.88"
• Flange Thickness: 0.38"
• Overall Length: 4.41"
• Cutoff Length: 2.4"
• Drop Length: 2.4"
• Design: Two-piece, no-skive coupling for faster assembly
• Corrosion Protection: TuffCoat™ plating for increased corrosion resistance
• Pressure Capability (Series): GlobalSpiral™ thread ends rated for up to 6,000 psi (application dependent)

Ideal For

• Extremely high-pressure, high-impulse spiral-wire hydraulic hose applications
• Assemblies needing a 90° flange elbow to improve routing and reduce hose strain
• Shops aiming to speed builds with a no-skive coupling design
• Equipment operating in harsh environments where corrosion resistance is important
• Hydraulic systems where reducing assembly contamination risk helps protect components and fluid power performance
