Hydraulic Adaptor, 1/2"FB X 1/2"MP

Hydraulic Adaptor, 1/2"FB X 1/2"MP

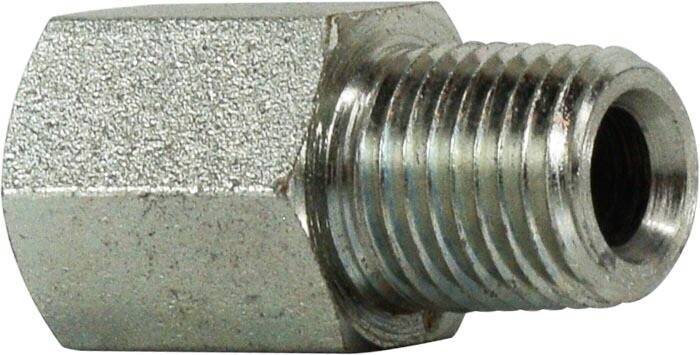

The 6404X0808 Hydraulic Straight Adapter connects 1/2 in female SAE O-Ring Boss (ORB) ports to 1/2 in male NPT pipe threads, allowing hydraulic systems to transition between ORB and tapered pipe connections. The straight adapter design keeps flow direct while providing a secure seal between two common hydraulic thread standards. Built from durable carbon steel and rated for working pressures up to 3000 PSI, it’s well suited for agricultural, industrial, and mobile hydraulic systems where reliability matters—because a proper thread conversion is far better than forcing mismatched fittings to cooperate.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6404X0808
• Product Type: Hydraulic straight adapter
• Fitting Shape: Straight
• Adapter Configuration: Female to Male
• End 1 Type: Female SAE O-Ring Boss (ORB)
• End 1 Size: SAE 8
• End 1 Thread: 3/4–16 ORB
• End 2 Type: Male NPT
• End 2 Size: 1/2 in NPT
• End 2 Thread: 1/2–14 NPT (tapered)
• Connection Type: ORB to NPT
• Material: Carbon Steel
• Maximum Working Pressure: 3000 PSI

Ideal For

• Connecting ORB hydraulic components to NPT threaded ports
• Hydraulic system plumbing and conversions
• Agricultural, construction, and industrial equipment
• Systems operating at pressures up to 3000 PSI
• Situations where the right adapter saves you from stacking fittings like a hydraulic tower of compromise
