Hydraulic Adaptor, 1/2"MB X 1/2"FPX

Hydraulic Adaptor, 1/2"MB X 1/2"FPX

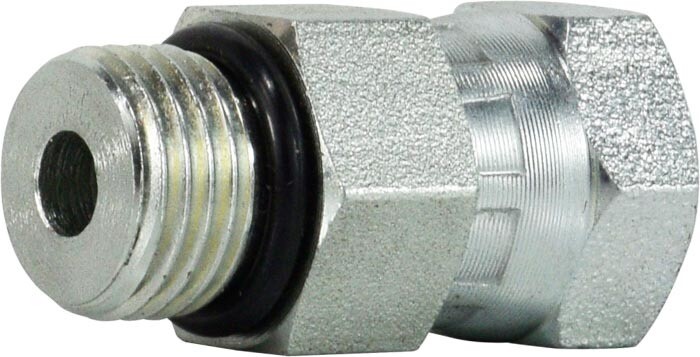

The 6900X0808 Hydraulic Adaptor is a straight hydraulic fitting designed to connect SAE O-Ring Boss (ORB) male threads to a female NPT swivel connection, making it a reliable solution for adapting hydraulic lines in equipment and fluid power systems. Built from durable carbon steel and rated for working pressures up to 3,500 PSI, this adaptor provides a secure, leak-resistant connection for demanding hydraulic applications. The female swivel design allows easier installation and alignment, which is especially helpful when dealing with tight plumbing layouts—because wrestling hydraulic fittings is rarely anyone’s favorite job.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6900X0808
• Product Type: Hydraulic adaptor / straight fitting
• Fitting Shape: Straight
• Material: Carbon steel
• Working Pressure: 3,500 PSI
• End 1 Type: Male SAE (ORB)
• End 1 Size: SAE 8 – 3/4"-16 ORB
• End 2 Type: Female NPT swivel
• End 2 Size: 1/2" NPT (1/2"-14 tapered)
• Connection Function: Adapts SAE ORB port connections to NPT hose or pipe fittings
• Installation Benefit: Swivel female end helps simplify alignment during installation

Ideal For

• Adapting hydraulic lines between SAE ORB ports and NPT fittings
• Agricultural, construction, and industrial hydraulic systems
• Repairing or modifying hydraulic plumbing on equipment and implements
• Technicians who need a high-pressure rated steel fitting
• Situations where the fitting should seal tight the first time instead of requiring three trips back to the toolbox
