Hydraulic Adaptor, 1/2"MB X 3/8"FP

Hydraulic Adaptor, 1/2"MB X 3/8"FP

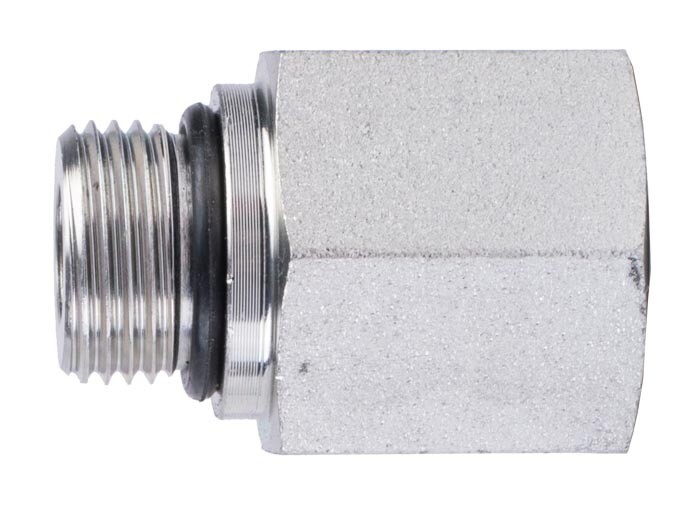

The 6405X0806 Hydraulic Adaptor is a straight hydraulic fitting designed to connect SAE O-ring boss (ORB) ports to NPT pipe thread components. Featuring a 1/2" male SAE ORB connection and a 3/8" female NPT port, this adaptor allows hydraulic components with different thread standards to be connected securely. Built from durable carbon steel and rated for working pressures up to 4000 PSI, it provides dependable sealing and strength for demanding hydraulic systems—because sometimes the easiest way to connect two different thread types is simply giving them the right adaptor.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 6405X0806
• Product Type: Hydraulic adaptor
• Fitting Shape: Straight
• End 1 Connection: Male SAE ORB (O-Ring Boss)
• End 1 Size: SAE 8 (3/4"-16 ORB)
• End 2 Connection: Female NPT
• End 2 Size: 3/8" NPT (3/8"-18 tapered thread)
• Configuration: 1/2" MB × 3/8" FP
• Working Pressure: Up to 4000 PSI
• Material: Carbon steel
• Seal Type: O-ring boss sealing on SAE side with NPT tapered pipe threads
• Function: Adapts SAE ORB ports to NPT pipe thread connections

Ideal For

• Hydraulic systems requiring SAE ORB to NPT conversion
• Connecting hydraulic components with different thread standards
• Agricultural, construction, and industrial equipment
• Hydraulic hose and component installations
• Mechanics who know that the right adaptor can save a lot of time—and a few trips back to the parts shelf
