Hydraulic Adaptor, 3/8"MB X 1/2"FPX

Hydraulic Adaptor, 3/8"MB X 1/2"FPX

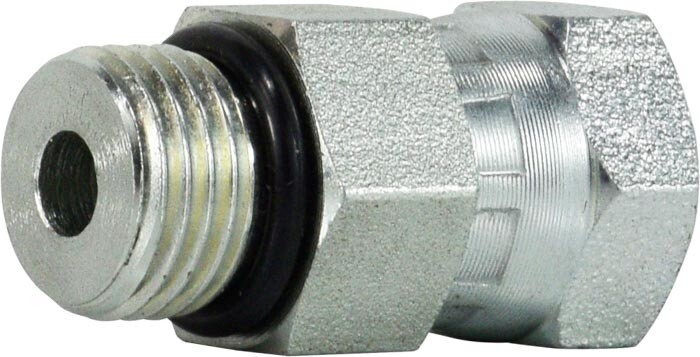

The 6900X0608 Hydraulic Straight Adapter connects 3/8 in Male SAE O-Ring Boss (ORB) ports to 1/2 in Female NPT swivel connections, allowing hydraulic systems to transition between ORB and NPT thread types. The straight adapter design keeps fluid flow direct, while the female NPT swivel end allows easier alignment during installation. Built from durable carbon steel and rated for working pressures up to 3500 PSI, this fitting provides reliable performance in agricultural, industrial, and mobile hydraulic systems.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6900X0608
• Product Type: Hydraulic straight adapter
• Fitting Shape: Straight
• Adapter Configuration: Male to Female
• End 1 Type: Male SAE O-Ring Boss (ORB)
• End 1 Size: SAE 6
• End 1 Thread: 9/16–18 ORB
• End 2 Type: Female NPT Swivel
• End 2 Size: 1/2 in NPT
• End 2 Thread: 1/2–14 NPT (tapered)
• Connection Type: ORB to NPT swivel
• Material: Carbon Steel
• Maximum Working Pressure: 3500 PSI

Ideal For

• Connecting ORB hydraulic components to NPT threaded ports
• Hydraulic system plumbing and conversions
• Agricultural, construction, and industrial hydraulic equipment
• Systems operating at pressures up to 3500 PSI
• Situations where the right adapter keeps hydraulic plumbing simple instead of stacking fittings like a small tower of compromises
