Hydraulic Adaptor, 3/8"MB X 1/4"FP

Hydraulic Adaptor, 3/8"MB X 1/4"FP

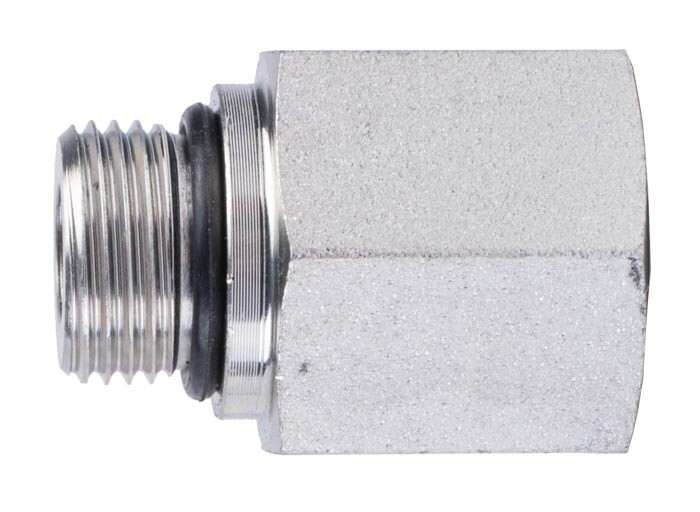

The 6405X0604 Hydraulic Adapter is a straight hydraulic fitting designed to connect SAE ORB ports to female NPT threaded connections in high-pressure hydraulic systems. Made from durable carbon steel, this adapter provides a strong, reliable transition between hydraulic standards while maintaining a secure seal. The male SAE ORB end uses an O-ring seal for leak-resistant performance, while the female NPT connection allows attachment to tapered pipe-thread components. Rated for up to 4000 PSI, it’s well suited for agricultural, industrial, and equipment hydraulic systems where dependable connections keep everything running smoothly.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6405X0604
• Product Type: Hydraulic adapter fitting
• Fitting Shape: Straight
• End 1 Type: Male SAE ORB
• End 1 Size: SAE 6 (9/16"-18 ORB)
• End 2 Type: Female NPT
• End 2 Size: 3/8" NPT (3/8"-18 tapered thread)
• Connection Size: 3/8" MB x 1/4" FP
• Material: Carbon steel
• Working Pressure: Up to 4000 PSI
• Sealing Method: O-ring seal on SAE ORB connection
• Application: Adapts SAE ORB hydraulic ports to NPT threaded components
• Performance: Designed for secure sealing in high-pressure hydraulic systems

Ideal For

• Hydraulic system installation and maintenance
• Connecting SAE ORB ports to NPT threaded components
• Agricultural, construction, and industrial hydraulic equipment
• High-pressure hydraulic lines requiring reliable adapters
• Mechanics who prefer hydraulic fittings that seal tight instead of decorating the shop floor with hydraulic oil
