Hydraulic Adaptor, 3/8"MB X 3/8"FP

Hydraulic Adaptor, 3/8"MB X 3/8"FP

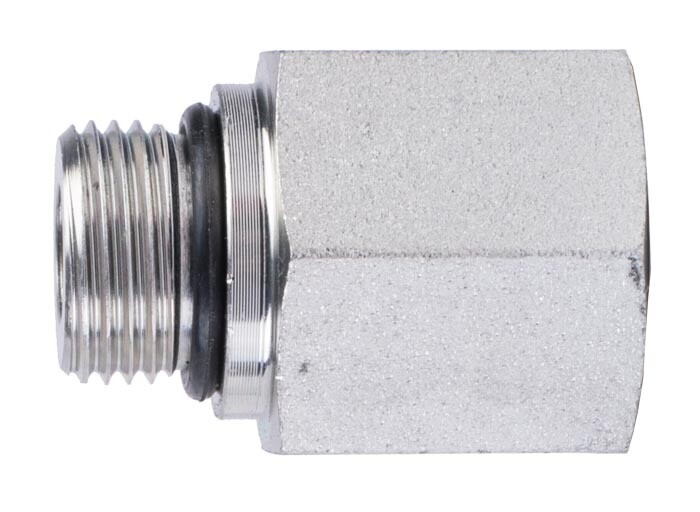

The 6405X0606 Hydraulic Adapter is a heavy-duty straight hydraulic fitting designed to connect SAE ORB ports to female NPT threaded connections. Built from durable carbon steel, this adapter provides a strong and reliable connection for high-pressure hydraulic systems. The male SAE ORB end seals with an O-ring for leak-resistant performance, while the female NPT end allows connection to tapered pipe thread fittings or components. With a 5000 PSI working pressure rating, it’s well suited for demanding hydraulic equipment where dependable connections are essential—because in hydraulic systems, even the smallest leak tends to make the biggest mess.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6405X0606
• Product Type: Hydraulic adapter fitting
• Fitting Shape: Straight
• End 1 Type: Male SAE ORB
• End 1 Size: SAE 6 (9/16"-18 ORB)
• End 2 Type: Female NPT
• End 2 Size: 1/4" NPT (1/4"-18 tapered thread)
• Connection Size: 3/8" MB x 3/8" FP
• Material: Carbon steel
• Working Pressure: Up to 5000 PSI
• Sealing Method: O-ring face seal on SAE ORB connection
• Application: Adapts SAE ORB hydraulic ports to NPT threaded connections
• Performance: Designed for high-pressure hydraulic systems and reliable sealing

Ideal For

• Hydraulic system installation and repair
• Connecting SAE ORB ports to NPT threaded components
• Agricultural, construction, and industrial hydraulic equipment
• High-pressure hydraulic circuits requiring dependable adapters
• Mechanics who appreciate fittings that seal properly the first time instead of requiring three extra wraps of tape and a prayer
