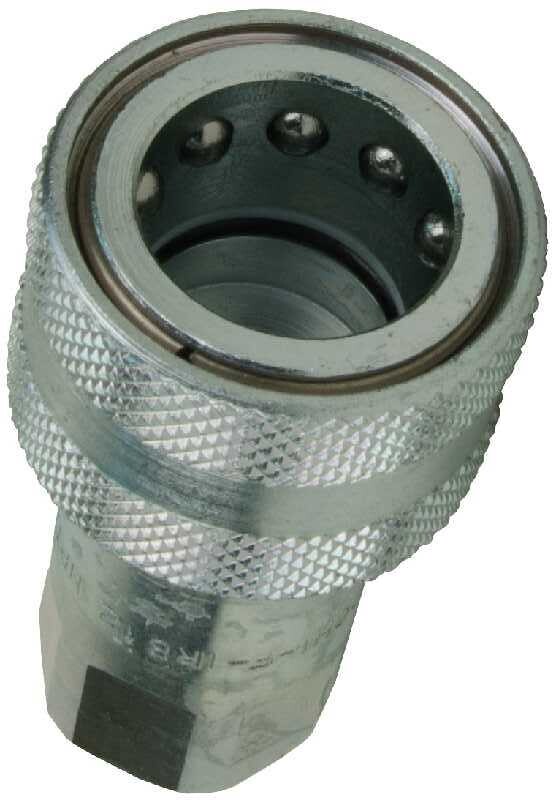

Hydraulic Coupler, 3/8"Body X 3/8"FPT

Hydraulic Coupler, 3/8"Body X 3/8"FPT

Safeway’s S10 Series quick couplings meet international Standard ISO 7241-1 Series B requirements with improved performance over competitive interchanges (Aeroquip FD45, Hansen HK, Parker 60, etc.) This unit is 3/8” body size in plated steel with an operating pressure of 4,000 PSI and a 3/8″ female pipe thread.

• Meets dimensional requirements of ISO 7241-1 Series B, the most widely used Industrial Interchange.
• Interchangeable half-for-half with Aeroquip FD45, Hansen HK, and Parker 60 Series as well as others conforming to the interchange.
• Double shut-off poppet style valving with captive poppet seal provides a durable, guaranteed leak-free seal.
• Full-flow design for optimum system performance.
• 100% leak tested.
• Heavy duty detent ball latch design for a reliable connection time after time.
• Only rugged, high quality carbon steel valving and retainers; no powdered metal parts.
• Method of obtaining and presenting performance data conforms to ANSI (NFPA) T3.20.2.R2, Hydraulic fluid power – Quick action couplings – Test methods.
