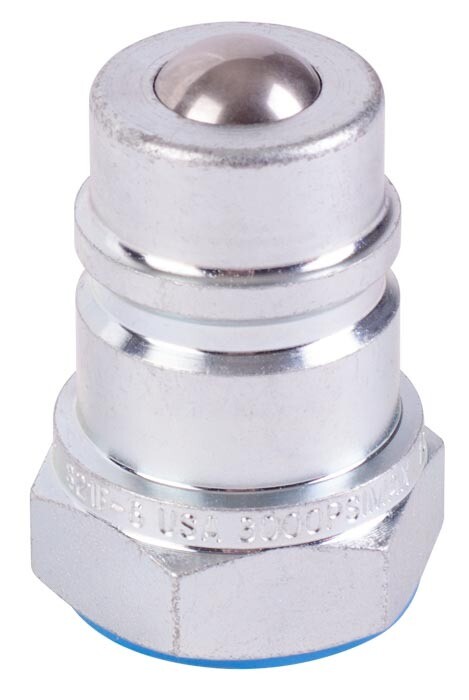

Hydraulic Coupler Tip, 3/4"X3/4"FPT, 28GPM

SafeWay’s S20 Series is a general purpose, double shut-off, fluid transfer quick coupling available with either a rugged ball valve or leak-free, high flow poppet valve. The S20 Series is used primarily on agricultural equipment and is recognized as an economical and reliable quick coupling. This series is original equipment on snow plows, garden tractors, full size tractors, front-end loaders, skid steer loaders, earth moving and mining equipment.

• 1/2 in body size meets dimensional requirements of ISO 5675
• Available in body sizes from 1/4 in through 1", in a variety of thread sizes and styles
• Double shut-off design available with either a rugged ball valve or leak-free, high flow poppet valve
• All poppet valve models are 100% leak tested before leaving the factory
• Reliable and durable ball locking mechanism provides smooth operation time after time
• Critical parts are hardened for long service life
• Steel products feature RoHS Compliant plated surfaces (silver appearance)
• One-way sleeve design allows implement break-away when the coupling is clamp mounted
• Interchangeable half-for-half with the parker/pioneer 4000 Series
• Referred to as "old reliable" by hands-on users
• Dust plugs and dust caps available
• Heavy-duty double break-away clamp available
• Method of obtaining and presenting performance data conforms to ANSI (NFPA) T3.20.2.r2, Hydraulic fluid power - Quick action couplings - Test methods

Manufacturer Part Number	S21F-6
Type	Quick Connect
Connection Type	NPT
Thread Size	3/4 in-14
Pressure Rating	3000 psi
Material	Steel
Finish	Plain
Temperature Rating	-40 to 250 deg F
Outside Diameter	1-33/64 in
Dimensions	2-5/32 in L
