Hydraulic Elbow Adaptor, 1/4"MJ X 1/4"MP

Hydraulic Elbow Adaptor, 1/4"MJ X 1/4"MP

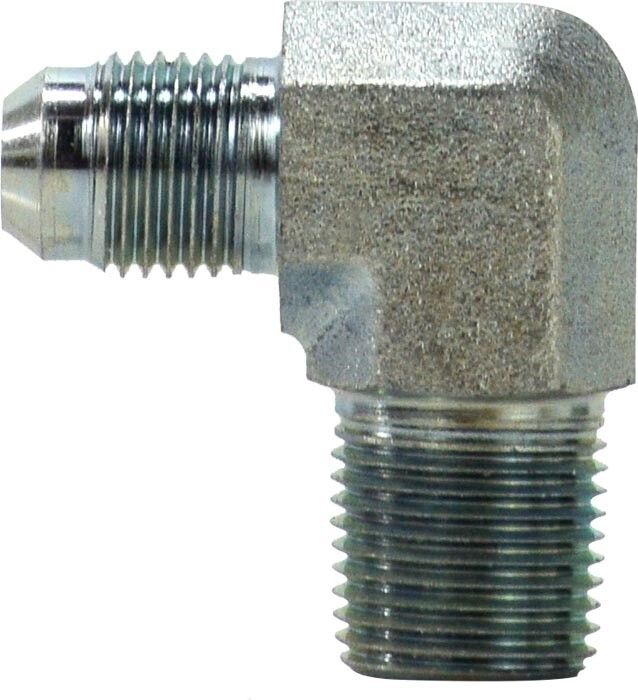

The 2501X0404 Hydraulic Elbow Adaptor is a 90° hydraulic fitting designed to connect JIC flare systems to NPT threaded ports while redirecting flow at a right angle. Built from durable carbon steel and rated for working pressures up to 5,000 PSI, this adaptor provides a reliable connection between hydraulic hoses and pipe-threaded components. With a 1/4" Male JIC (37° flare) on one end and a 1/4" Male NPT thread on the other, it’s ideal for tight hydraulic installations where a straight fitting simply won’t fit—because sometimes the line needs to turn the corner without turning the job into a headache.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 2501X0404
• Product Type: Hydraulic elbow adaptor
• Fitting Shape: 90° elbow
• End 1 Type: Male JIC
• End 1 Size: JIC 4 (7/16"-20, 37° flare)
• End 2 Type: Male NPT (MPT)
• End 2 Size: 1/4" NPT (1/4"-18 tapered thread)
• Material: Carbon steel
• Working Pressure: Up to 5,000 PSI
• Connection Type: JIC flare × NPT threaded
• Seal Method: 37° metal-to-metal flare seal on JIC side; thread sealant or tape used on NPT side
• Applications: Hydraulic hose connections, fluid power systems, equipment plumbing, and industrial machinery

Ideal For

• Hydraulic systems requiring a 90° directional change
• Connecting JIC hydraulic hoses to NPT threaded ports
• Equipment repair and hydraulic line installation
• Tight installation spaces where straight fittings won't work
• Mechanics who know that one well-placed elbow fitting can save an hour of wrestling with hydraulic hose routing.
