Hydraulic Elbow Adaptor, 3/8"MJ X 1/4"MP

Hydraulic Elbow Adaptor, 3/8"MJ X 1/4"MP

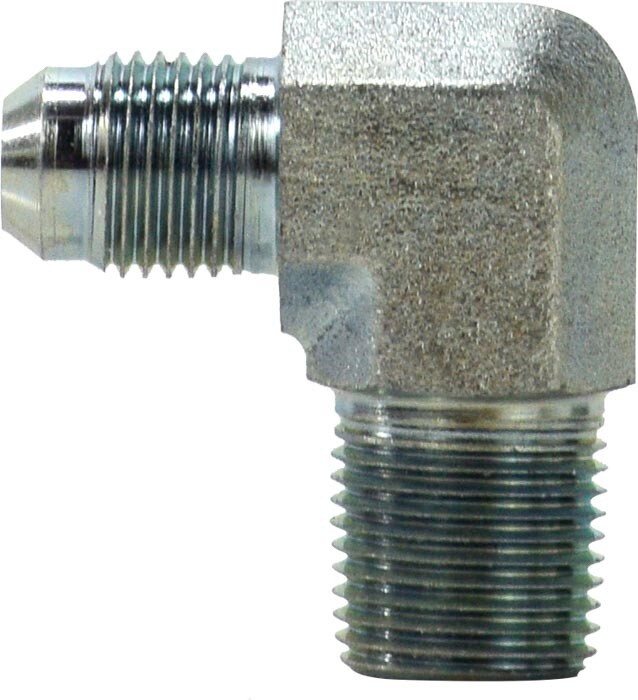

The 2501X0604 Hydraulic 90° Elbow Adapter (3/8" MJ x 1/4" MP) is a high-pressure steel fitting designed to connect a 3/8" JIC 37° flare hose end to a 1/4" NPT port while redirecting hydraulic flow at a 90° angle. Constructed from durable carbon steel and rated for working pressures up to 5000 PSI, this adapter is built for demanding hydraulic systems where strength and reliable sealing are essential. The JIC flare connection provides a dependable metal-to-metal seal, while the male NPT tapered threads create a tight pipe-thread connection when installed with proper sealant. Its compact elbow design helps route hoses cleanly around tight spaces—because hydraulic lines prefer smooth routing instead of being forced into impossible angles.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 2501X0604
• Product Type: Hydraulic elbow adapter
• Fitting Shape: 90° elbow
• Connection Type: Male JIC 37° flare to Male NPT
• End 1 Type: Male JIC
• End 1 Size: JIC 6 – 3/8 in (9/16"-18 thread, 37° flare)
• End 2 Type: Male NPT
• End 2 Size: 1/4 in NPT (1/4"-18 tapered thread)
• Material: Carbon steel
• Working Pressure: Up to 5000 PSI
• Seal Type: JIC metal flare seal and NPT tapered pipe thread seal
• Application: Hydraulic hose-to-port connections requiring directional routing

Ideal For

• Connecting 3/8" JIC hydraulic hoses to 1/4" NPT ports
• Hydraulic systems requiring a 90° directional change
• Agricultural, construction, and industrial hydraulic equipment
• Installations where tight routing prevents hose stress and wear
• Mechanics who prefer fittings that guide hydraulic flow neatly instead of making hoses argue with physics.
