Hydraulic Elbow Adaptor, 5/16"MJ X 1/4"MP

Hydraulic Elbow Adaptor, 5/16"MJ X 1/4"MP

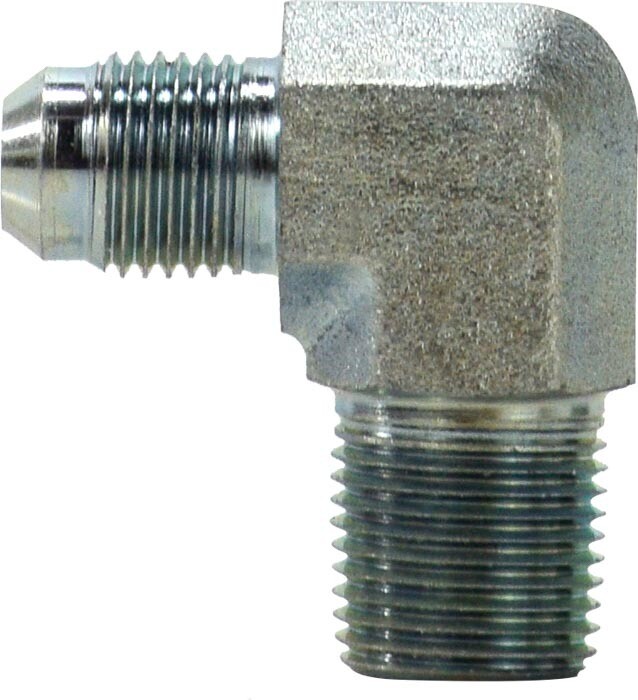

The 2501X0504 Hydraulic Elbow Adapter (5/16" MJIC x 1/4" MNPT) is a high-pressure hydraulic fitting designed to connect JIC and NPT components while changing flow direction by 90 degrees. Constructed from durable carbon steel, this elbow adapter provides strong, reliable performance in demanding hydraulic systems with a working pressure rating up to 5000 PSI. The 37° JIC flare connection creates a secure metal-to-metal seal, while the tapered NPT threads allow compatibility with a wide range of hydraulic ports and fittings. Its compact 90° design helps improve hose routing and reduce strain on lines—because sometimes the right elbow fitting is the difference between a clean install and a hose that looks like it wrestled a snake.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 2501X0504
• Product Type: Hydraulic 90° elbow adapter
• Fitting Shape: 90-degree elbow
• End 1 Type: Male JIC
• End 1 Size: JIC 5 (3/8"-22, 37° flare)
• End 2 Type: Male NPT
• End 2 Size: 1/4 in. NPT (1/4"-18 tapered thread)
• Material: Carbon steel
• Working Pressure: Up to 5000 PSI
• Seal Type: 37° flare metal-to-metal JIC seal
• Thread Type: Standard tapered NPT pipe thread
• Construction: Heavy-duty steel body for durability in hydraulic systems
• Design Benefit: Allows directional change while connecting JIC and NPT components

Ideal For

• Hydraulic systems requiring a 90° directional change
• Connecting 5/16 in. JIC hose ends to 1/4 in. NPT ports
• Agricultural, construction, and industrial hydraulic equipment
• Installations where space constraints require angled fittings
• Hydraulic setups where clean hose routing keeps equipment running smoothly instead of looking like a spaghetti factory
