Hydraulic Ell Adapter, 1/2"FS X 5/8"MB

Hydraulic Ell Adapter, 1/2"FS X 5/8"MB

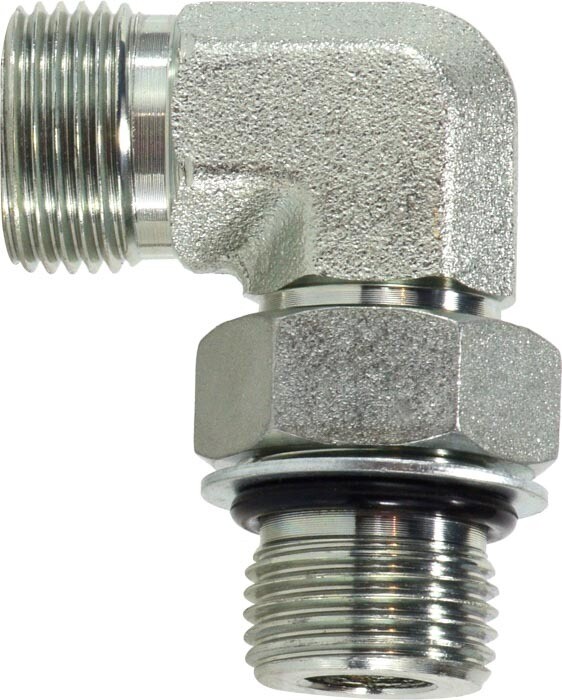

The FS6801X0810 Hydraulic 90° Elbow Adapter is a heavy-duty hydraulic fitting designed to connect 1/2" Male Flat Face O-Ring (FFOR) connections to 5/8" Male Adjustable O-Ring Boss (ORB) ports. Built from one-piece forged steel, this adapter provides strong, leak-resistant performance in high-pressure hydraulic systems. The 90° elbow design allows efficient hose routing in tight spaces while maintaining reliable fluid flow. With a maximum operating pressure of up to 5,000 PSI, this adapter is suited for demanding agricultural, construction, and industrial hydraulic applications—because when hydraulic lines need to turn a corner, they should do it without leaks or complaints.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: FS6801X0810
• Product Type: Hydraulic 90° elbow adapter
• Adapter Style: Male to male
• Configuration: 1/2 in Male Flat Face O-Ring × 5/8 in Male Adjustable O-Ring Boss
• End 1 Style: Male Flat Face O-Ring (FFOR)
• End 1 Thread: 13/16–16
• End 1 Size: 1/2 in
• End 2 Style: Male Adjustable O-Ring Boss (ORB)
• End 2 Thread: 7/8–14 SAE
• End 2 Size: 5/8 in
• Adapter Type: 90° elbow
• Material: One-piece forged steel
• Maximum Operating Pressure: 5,000 PSI
• Overall Length: 1.97 in.
• Body Length: 1.85 in.
• Height: 1.2 in.
• Width: 2.7 in.
• Approximate Weight: 0.41–0.54 lb

Ideal For

• Hydraulic hose routing in tight spaces
• Connecting FFOR and ORB hydraulic components
• Agricultural, construction, and industrial hydraulic systems
• Repairs or installations requiring high-pressure 90° hydraulic fittings
• Situations where a hydraulic line needs to turn the corner without turning into a leak
