Hydraulic Ell Adapter, 1/4"FS X 1/4"MB

Hydraulic Ell Adapter, 1/4"FS X 1/4"MB

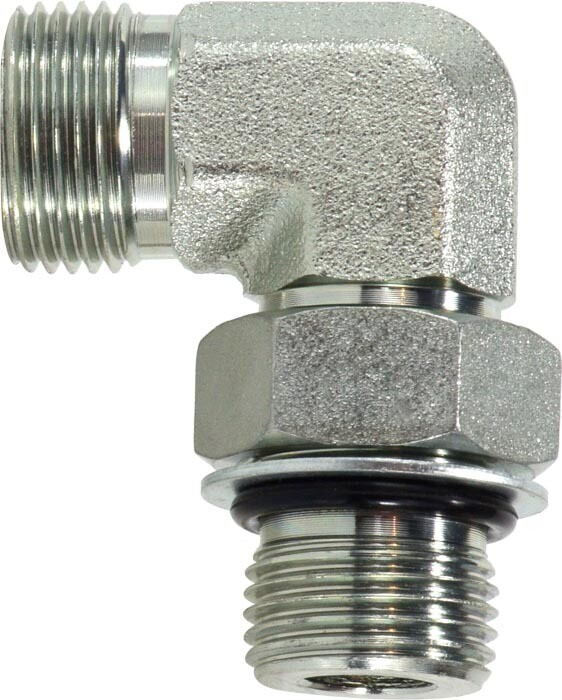

The FS6801X0404 Hydraulic Ell Adapter is a 90° hydraulic elbow fitting designed to connect a 1/4" Male O-Ring Boss (ORB) port to a 1/4" Male Flat Face O-Ring (FFOR) connection while redirecting fluid flow at a right angle. Constructed from durable steel, this adapter provides a dependable, leak-resistant connection commonly used in modern hydraulic systems. The ORB connection offers a secure O-ring seal, while the flat face O-ring design minimizes leakage and handles vibration well, making it ideal for compact hydraulic assemblies where reliability matters. In short, it neatly turns the corner so your hydraulic lines don’t have to argue about which way to go.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: FS6801X0404
• Product Type: Hydraulic elbow adapter
• Adapter Type: 90° elbow
• Connection Type: Male to Male
• End 1 Style: Male O-Ring Boss (ORB)
• End 1 Size: 1/4"
• End 1 Thread: SAE 7/16"-20
• End 2 Style: Male Flat Face O-Ring (FFOR)
• End 2 Size: 1/4"
• End Configuration: 1/4" ORB x 1/4" FFOR
• Seal Type: O-ring boss and flat face O-ring hydraulic seal
• Material: Steel
• Application: Hydraulic systems requiring a 90° directional connection between ORB and flat-face fittings

Ideal For

• Hydraulic hose and equipment plumbing
• Agricultural, construction, and industrial hydraulic systems
• Applications needing compact 90° routing of hydraulic lines
• Connecting ORB ports to flat-face hydraulic fittings
• Situations where hydraulic lines need to turn the corner without springing a leak
