Hydraulic Ell Adapter, 3/4"FS X 3/4"MB

Hydraulic Ell Adapter, 3/4"FS X 3/4"MB

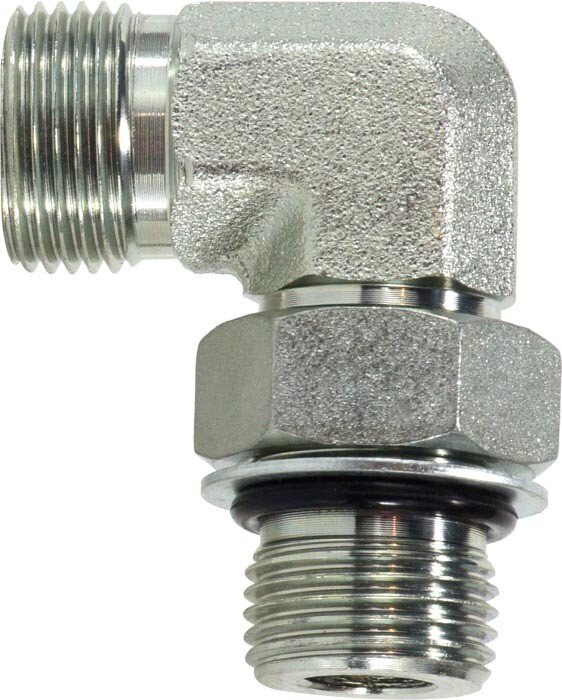

The FS6801X1212 Hydraulic Ell Adapter is a heavy-duty 90° steel elbow fitting designed to connect 3/4" Male O-Ring Boss (ORB) to 3/4" Male Flat Face O-Ring (FFOR) in high-pressure hydraulic systems. Built for strength and leak-resistant performance, this compact elbow allows efficient hose routing in tight spaces while handling up to 5,000 psi—because hydraulic flow should be controlled, not chaotic.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: FS6801X1212
• Adapter Type: 90° Elbow
• Connection Type: Male x Male
• End 1 Style: 3/4" Male O-Ring Boss (ORB)
• End 1 Thread: (SAE) 1-1/16–12
• End 2 Style: 3/4" Male Flat Face O-Ring (FFOR)
• End Sizes: 3/4 in x 3/4 in
• Material: Steel
• Maximum Operating Pressure: 5,000 psi
• Overall Length: 2.17 in
• Length: 2.25 in
• Height: 1.45 in
• Width: 3 in
• Overall Diameter: 3/4 in
• Weight: 0.725 – 0.83 lbs
• Application: Flat Face O-Ring to O-Ring Boss hydraulic connections

Ideal For

• Hydraulic systems requiring 90° routing
• Connecting ORB to FFOR fittings
• High-pressure equipment up to 5,000 psi
• Compact installations where space-efficient elbow fittings are needed**
• Industrial, agricultural, and mobile hydraulic applications
