Hydraulic Ell Adapter, 3/4"FS X 5/8"MB

Hydraulic Ell Adapter, 3/4"FS X 5/8"MB

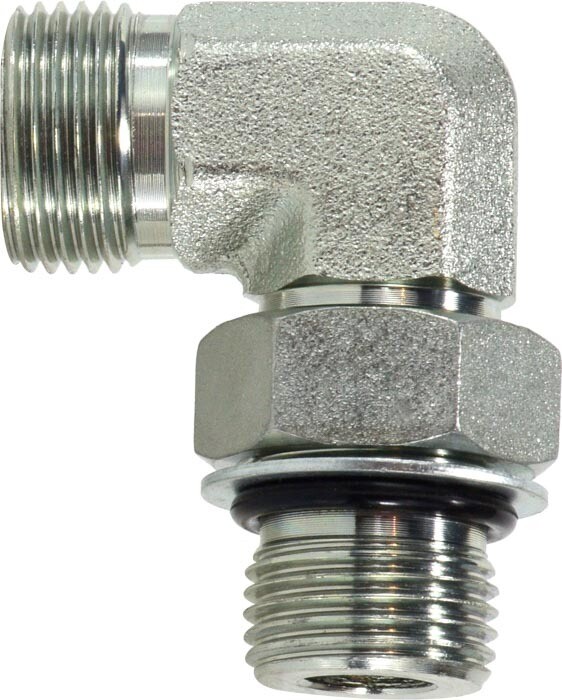

The FS6801X1210 Hydraulic 90° Elbow Adapter is a one-piece forged steel fitting designed to connect a 3/4" Male Flat Face O-Ring (FFOR) to a 5/8" Male Adjustable O-Ring Boss (ORB) port. Built for high-pressure hydraulic systems up to 5,000 PSI, this compact elbow provides secure, leak-resistant performance while allowing improved hose routing—because clean routing and solid sealing keep hydraulics working the way they should.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: FS6801X1210
• Product Type: 90° Hydraulic Elbow Adapter
• Adapter Type: Male to Male
• End 1 Style: Male Flat Face O-Ring (FFOR)
• End 1 Size: 3/4 in
• End 1 Thread: 1-3/16–12
• End 2 Style: Male Adjustable O-Ring Boss (ORB)
• End 2 Size: 5/8 in
• End 2 Thread: (SAE) 7/8–14
• Material: One-Piece Forged Steel
• Maximum Operating Pressure: 5,000 PSI
• Overall Length: 2.01 in
• Length: 2.7 in
• Height: 1.35 in
• Width: 2.15 in
• Overall Diameter: 3/4 in
• Weight: Approx. 0.72–0.76 lb

Ideal For

• High-pressure hydraulic systems
• Connecting FFOR to ORB ports at a 90° angle
• Agricultural, construction, and industrial equipment
• Applications requiring durable, forged steel hydraulic fittings
