Hydraulic Ell Adapter, 5/8"FS X 3/4"MB

Hydraulic Ell Adapter, 5/8"FS X 3/4"MB

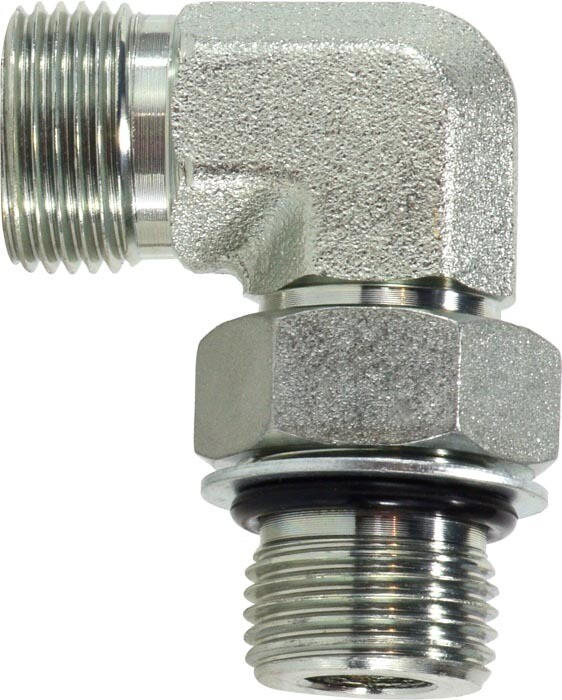

The FS6801X1012 Hydraulic Ell Adapter is a heavy-duty 90° hydraulic elbow designed to connect 5/8" Male Flat Face O-Ring (FFOR) to 3/4" Male Adjustable O-Ring Boss (ORB) fittings. Constructed from one-piece forged steel, this adapter delivers strength and durability for high-pressure hydraulic systems up to 5000 PSI. Its compact 90° configuration allows for clean hose routing in tight spaces while maintaining secure, leak-resistant connections.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: FS6801X1012
• Adapter Type: 90° Elbow
• Connection Type: Male to Male
• End 1 Style: 5/8" Male Flat Face O-Ring (FFOR)
• End 1 Thread: 1–14
• End 2 Style: 3/4" Male Adjustable O-Ring Boss (ORB)
• End 2 Thread: (SAE) 1-1/16–12
• End 1 Size: 5/8 in
• End 2 Size: 3/4 in
• Material: One-Piece Forged Steel
• Maximum Operating Pressure: 5000 PSI
• Overall Length: 2.17 in
• Overall Diameter: 5/8 in
• Weight: 0.82 lbs
• Configuration: Flat Face O-Ring to O-Ring Boss

Ideal For

• High-pressure hydraulic systems up to 5000 PSI
• Equipment requiring 90° hose routing in confined spaces
• Applications needing secure, leak-resistant O-ring connections
• Agricultural, industrial, and mobile hydraulic equipment**
