Hydraulic Ell Adaptor, 1/2"MB X 1/2"FPX

Hydraulic Ell Adaptor, 1/2"MB X 1/2"FPX

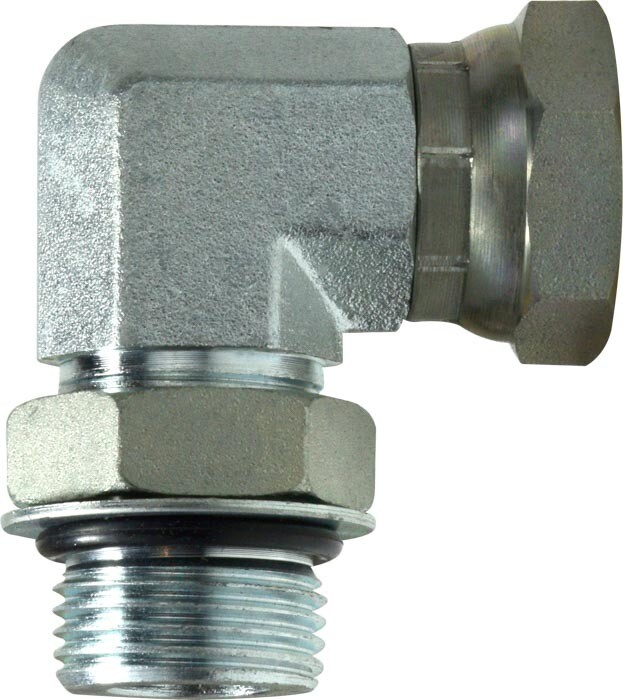

The 6901X0808 Hydraulic Ell Adaptor is a 90° steel elbow fitting designed to connect a 1/2" Female Pipe Swivel (NPTF/NPSM) to a 1/2" Male O-Ring Boss (ORB) connection. Built for hydraulic systems operating up to 3,500 PSI, this compact elbow allows for efficient hose routing and secure sealing in tight spaces—because sometimes the cleanest routing requires a right angle.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 6901X0808
• Adapter Type: 90° Elbow
• Connection Type: Female to Male
• End 1: 1/2" Female Pipe Swivel
• End 1 Thread: (NPTF) 1/2–14
• End 2: 1/2" Male O-Ring Boss (ORB)
• End 2 Thread: (SAE) 3/4–16
• Material: Steel
• Maximum Operating Pressure: 3,500 PSI
• Overall Length: 1.515"
• Height: 1.1"
• Width: 2.3"
• Weight: Approx. 0.27–0.28 lb

Ideal For

• Hydraulic systems requiring a 90° directional change
• Connecting pipe thread swivel to ORB fittings
• Agricultural, construction, and industrial equipment
• High-pressure applications up to 3,500 PSI
• Installations where space-efficient routing is critical

Turn the line where you need it—without sacrificing strength or seal integrity.
