Hydraulic Ell Adaptor, 1/2"MB X 1/2"MP

Hydraulic Ell Adaptor, 1/2"MB X 1/2"MP

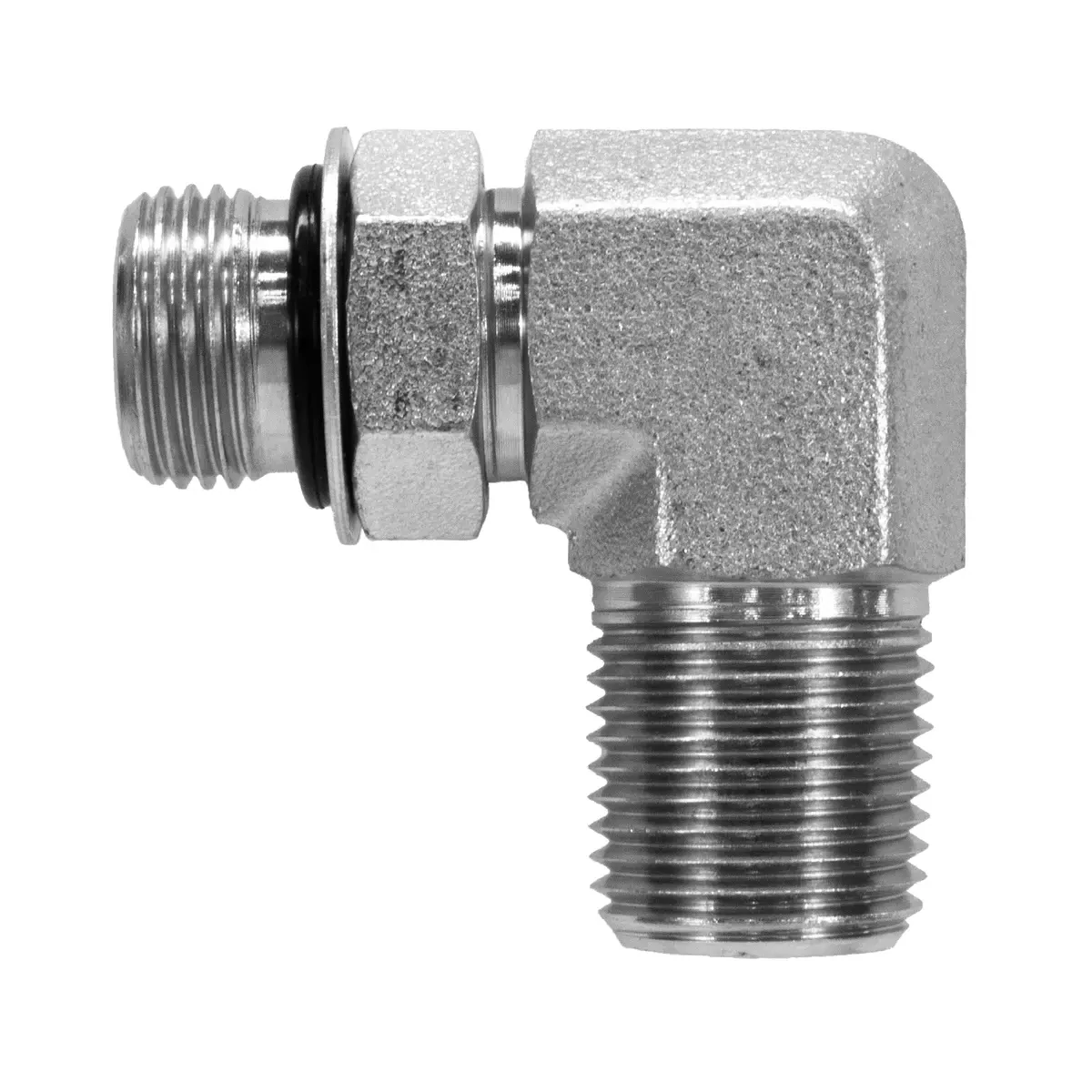

The 6806X0808 Hydraulic 90° Elbow Adapter is a heavy-duty hydraulic fitting designed to connect SAE O-ring boss ports to NPT threaded connections while redirecting flow at a 90-degree angle. Constructed from durable carbon steel and rated for working pressures up to 3000 PSI, this adapter features a SAE 8 (3/4"-16 ORB) male connection on one end and a 1/2" Male NPT connection on the other. The elbow design helps route hydraulic lines efficiently in tight installations—because a well-placed elbow fitting can make hydraulic plumbing far easier than trying to force a straight line where it doesn’t belong.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6806X0808
• Product Type: Hydraulic 90° elbow adapter
• Fitting Shape: 90 Degree Elbow
• End 1 Type: Male SAE (ORB)
• End 1 Size: SAE 8 (3/4"-16 ORB)
• End 2 Type: Male NPT
• End 2 Size: 1/2" NPT (1/2"-14 Tapered)
• Material: Carbon Steel
• Working Pressure: 3000 PSI
• Connection Style: SAE ORB to NPT threaded adapter

Ideal For

• Hydraulic systems requiring a 90° directional change
• Connecting SAE O-ring boss ports to NPT hydraulic lines
• Agricultural, construction, and industrial equipment
• Hydraulic plumbing in tight spaces where straight fittings won’t work
• Installations where a simple elbow fitting saves a lot of hose routing frustration
