Hydraulic Ell Adaptor, 1/2"MB X 3/8"FPX

Hydraulic Ell Adaptor, 1/2"MB X 3/8"FPX

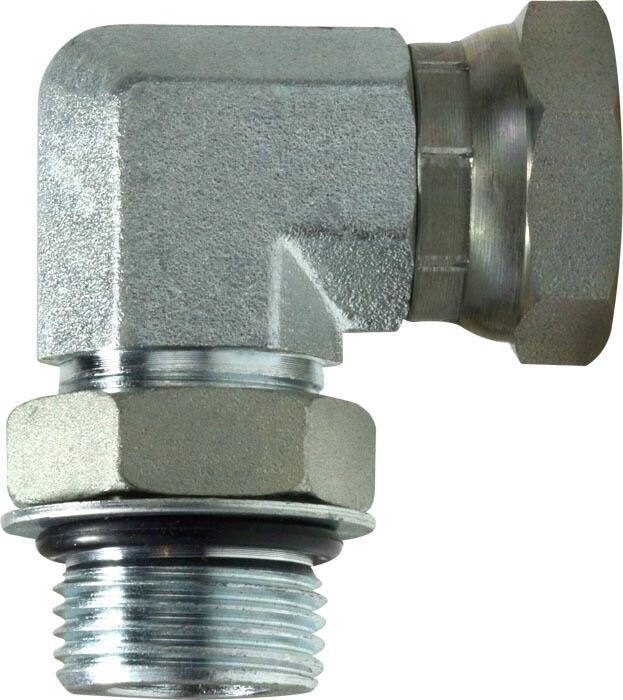

The 6901X0806 Hydraulic Ell Adaptor is a heavy-duty 90° steel hydraulic fitting designed to connect 3/8 in Female Pipe Swivel (NPTF) to 1/2 in Male O-Ring Boss (ORB) systems with secure, leak-resistant performance. Built for demanding hydraulic applications, this 4000 PSI-rated elbow adaptor provides a compact, space-saving solution for routing lines efficiently—because sometimes straight just won’t cut it.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6901X0806
• Adapter Type: 90° Elbow
• Description: 3/8 in Female Pipe Swivel x 1/2 in Male O-Ring Boss
• End 1 Size: 3/8 in
• End 1 Size Type: 3/8 NPTF
• End 1 Style: Female Pipe Swivel
• End 1 Thread: (NPTF) 3/8–18
• End 2 Size: 1/2 in
• End 2 Size Type: 1/2 ORB
• End 2 Style: Male O-Ring Boss
• End 2 Thread: (SAE) 3/4–16
• Both Ends Gender Type: Female to Male
• Both Ends Style/Type: NPSM to O-Ring Boss
• Material: Steel
• Maximum Operating Pressure: 4000 PSI
• Height: 1.969 in
• Length: 0.866 in
• Overall Length: 1.515 in
• Overall Diameter: 1/2 in
• Width: 1.496 in
• Weight: 0.28 lbs

Ideal For

• Hydraulic systems requiring a 90° directional change
• Equipment using 3/8 in NPTF female pipe swivel connections
• Applications with 1/2 in SAE ORB ports
• High-pressure systems operating up to 4000 PSI
• Tight routing situations where a compact elbow fitting keeps lines clean and efficient
