Hydraulic Ell Adaptor, 1/4"MB X 1/4"FPX

Hydraulic Ell Adaptor, 1/4"MB X 1/4"FPX

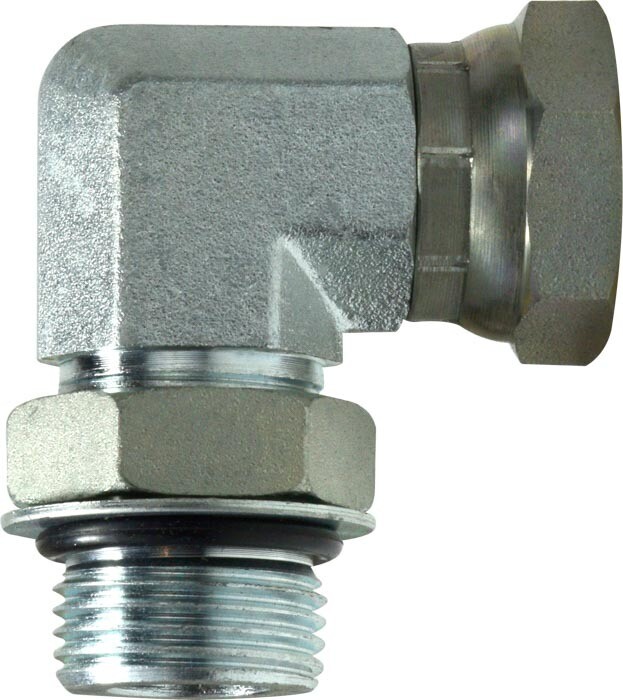

The 6901X0404 Hydraulic Ell Adaptor, 1/4"MB x 1/4"FPX is a high-performance hydraulic fitting designed for 90° elbow connections in hydraulic systems. It features a 1/4" female pipe swivel on one end and a 1/4" male O-ring boss (ORB) on the other, ensuring reliable and leak-proof connections. Made from steel, this adaptor is built to withstand high-pressure applications, with a maximum operating pressure of 5000 PSI. The 1/4 NPTF (National Pipe Thread Fuel) and 1/4 ORB (O-Ring Boss) thread types make this adaptor ideal for use in various hydraulic systems.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6901X0404
• Product Type: Hydraulic ell adaptor
• Connection Type: 1/4" female pipe swivel x 1/4" male O-ring boss
• Fitting Shape: 90° elbow for fluid redirection in tight spaces
• End 1 Size: 1/4" NPTF (1/4–18 tapered)
• End 2 Size: 1/4" ORB (7/16–20)
• Material: Steel for durability and strength
• Maximum Operating Pressure: 5000 PSI for high-pressure applications
• Length: 0.9 inches
• Height: 0.3 inches

Ideal For

• Hydraulic systems requiring 90° elbow connections to redirect fluid flow
• High-pressure applications that require 5000 PSI resistance
• Industrial machinery needing secure, leak-proof fittings with female NPTF and male ORB threads
• Users seeking a durable, reliable adaptor for quick and easy installation in hydraulic systems

This hydraulic ell adaptor provides secure, efficient connections to ensure optimal performance in demanding hydraulic applications.
