Hydraulic Ell Adaptor, 1/4"MJ X 1/4"FJX 45Deg

Hydraulic Ell Adaptor, 1/4"MJ X 1/4"FJX 45Deg

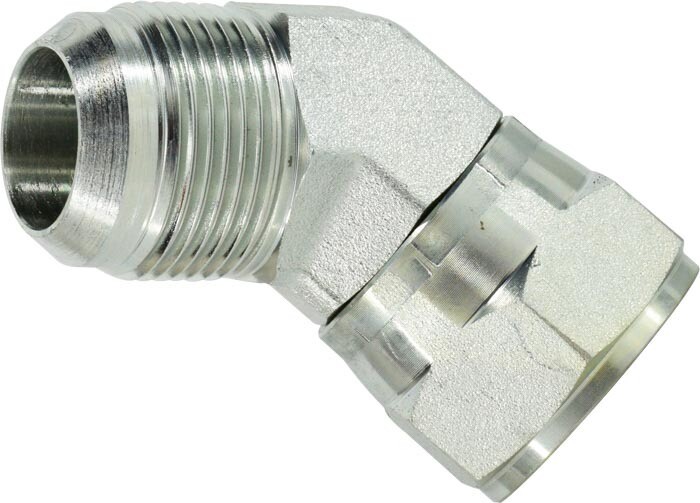

The 6502X0404 Hydraulic Elbow Adaptor is a 45° hydraulic fitting designed to connect a 1/4" male JIC to a 1/4" female JIC swivel, allowing fluid lines to change direction while maintaining a secure high-pressure connection. Constructed from durable carbon steel and rated for up to 5,000 PSI, this adaptor provides dependable performance in demanding hydraulic systems. The 45° elbow design helps route hoses and tubing cleanly in tight spaces—because sometimes a slight turn is all it takes to make the whole system fit perfectly.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6502X0404
• Product Type: Hydraulic elbow adaptor fitting
• Fitting Angle: 45°
• End 1 Type: Male JIC
• End 1 Size: JIC 4 — 7/16"-20 (37° flare)
• End 2 Type: Female JIC Swivel
• End 2 Size: JIC 4 — 7/16"-20 (37° flare)
• Connection Description: 1/4" MJ × 1/4" FJX
• Material: Carbon steel
• Working Pressure: Up to 5,000 PSI
• Design Benefit: Female swivel end simplifies installation and alignment
• Application: Routes hydraulic lines with a 45° directional change

Ideal For

• Hydraulic systems using JIC 37° flare fittings
• Equipment repair and hydraulic hose routing
• Agricultural, industrial, and construction machinery
• Installations requiring a compact 45° directional change
• Situations where a small elbow fitting keeps hoses neatly routed instead of doing awkward hydraulic gymnastics
