Hydraulic Ell Adaptor, 3/4"MB X 3/4"FPX

Hydraulic Ell Adaptor, 3/4"MB X 3/4"FPX

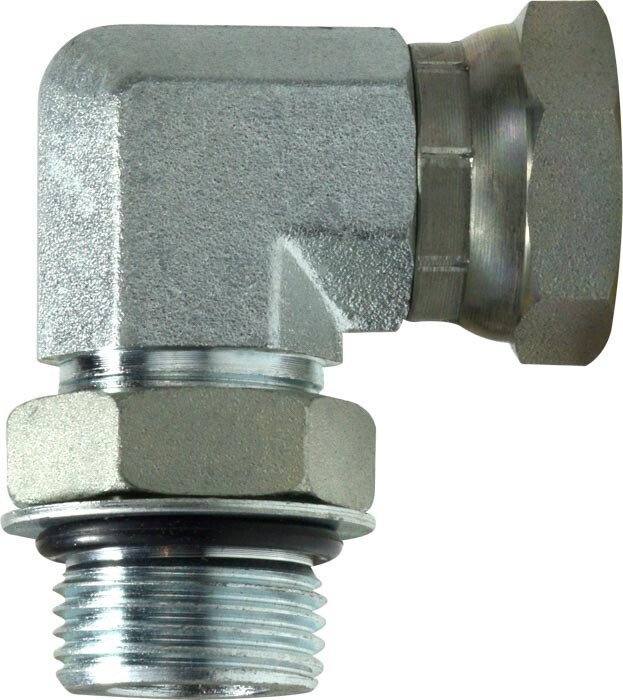

The 6901X1212 Hydraulic Ell Adaptor is a 90° steel elbow fitting designed to connect a 3/4" female pipe swivel to a 3/4" male O-ring boss (ORB) port. Built for dependable hydraulic performance, this adapter provides a secure, leak-resistant connection while allowing directional change in tight plumbing layouts. Rated up to 2250 PSI, it’s engineered for durability in demanding fluid power systems.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6901X1212
• Product Type: Hydraulic 90° elbow adaptor
• Adapter Type: 90° Elbow
• Connection Style: Female Pipe Swivel (NPTF) to Male O-Ring Boss (ORB)
• End 1 Size: 3/4 in
• End 1 Thread: 3/4–14 NPTF
• End 1 Style: Female Pipe Swivel (NPSM)
• End 2 Size: 3/4 in
• End 2 Thread: 1-1/16–12 SAE (ORB)
• End 2 Style: Male O-Ring Boss
• Material: Steel
• Maximum Operating Pressure: 2250 PSI
• Overall Length: 1.921 in
• Length: 2.3 in
• Width: 2.5 in
• Height: 0.9 in
• Weight: 0.66–0.75 lbs
• Overall Diameter: 3/4 in

Ideal For

• Hydraulic systems requiring a 90° directional change
• Connecting NPTF female swivel hoses to ORB ports
• Agricultural and industrial hydraulic equipment
• Tight plumbing configurations where space is limited
• Applications demanding secure, high-pressure fluid connections
