Hydraulic Ell Adaptor, 3/8"MB X 1/4"FPX

Hydraulic Ell Adaptor, 3/8"MB X 1/4"FPX

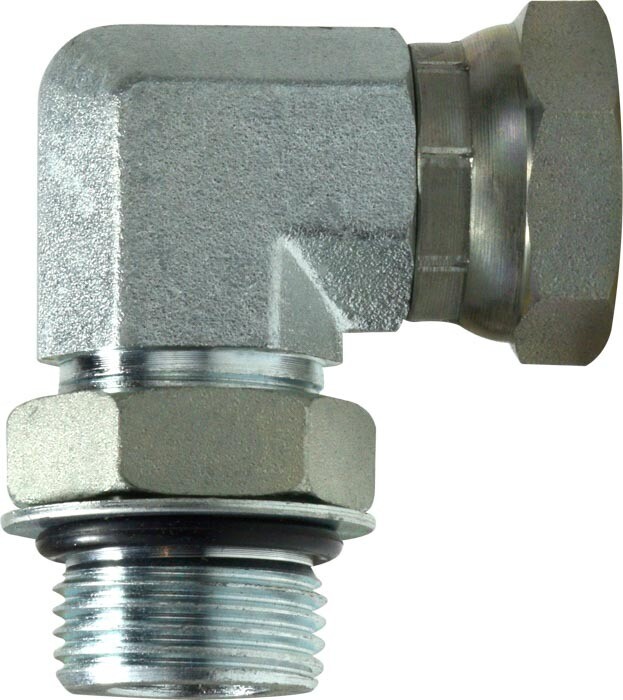

The 6901X0604 Hydraulic 90° Elbow Adapter connects 1/4 in female pipe swivel (NPTF) to 3/8 in male O-Ring Boss (ORB) ports, allowing hydraulic lines to change direction cleanly while maintaining a secure, leak-resistant connection. The 90° elbow design helps route hoses and tubing in tight spaces where straight fittings simply won’t cooperate. Built from durable steel and rated for pressures up to 5000 psi, this adapter is designed for demanding hydraulic systems where reliability matters—because hydraulic leaks tend to ruin everyone’s day.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6901X0604
• Product Type: Hydraulic adapter – 90° elbow
• Adapter Configuration: Female to Male
• Angle: 90° elbow
• End 1 Size: 1/4 in
• End 1 Style: Female Pipe Swivel
• End 1 Thread: 1/4–18 NPTF
• End 1 Connection Type: NPSM / NPTF compatible
• End 2 Size: 3/8 in
• End 2 Style: Male O-Ring Boss (ORB)
• End 2 Thread: 9/16–18 SAE
• Connection Type: NPSM to ORB
• Material: Steel
• Maximum Operating Pressure: 5000 psi
• Overall Length: 1.3 in
• Height: 0.4 in

Ideal For

• Hydraulic systems requiring a 90° direction change in tight routing spaces
• Connecting 1/4 in NPTF female pipe swivel hoses to 3/8 in ORB ports
• Agricultural, industrial, and mobile hydraulic equipment
• Applications needing reliable high-pressure connections up to 5000 psi
• Situations where a compact elbow fitting keeps hoses from making awkward gymnastics routines
