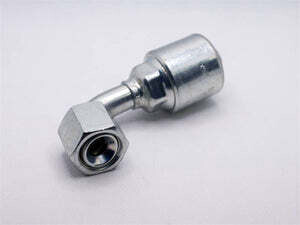

Hydraulic Fitting, 1/2"X1/2" Female Jic 90Deg

The 8G-8FJX90S Hydraulic Fitting is a 90° female JIC hydraulic fitting/coupling designed to provide a reliable, leak-resistant connection in hydraulic hose assemblies. Built for crimp applications, MegaCrimp® style couplings use an internal “C” insert that helps accommodate different hose constructions and wall thicknesses while distributing crimping forces evenly to form a concentric seal—supporting simplified inventory and dependable performance on one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 8G-8FJX90S
• Product Type: Hydraulic fitting / crimp coupling
• End Style: Female JIC 90°
• Fitting Nominal Size: 1/2" x 1/2"
• Hose ID (Hose 1): 1/2"
• Thread Size 1: 3/4"-16
• Thread Pitch: 16
• Nut Hex Size: 24 mm
• Overall Length: 3.19 in
• Cutoff Length: 1.71 in
• Drop Length: 1.14 in
• Seal / Crimp Design: MegaCrimp® “C” insert helps fit varied hose constructions and promotes an even, concentric crimp seal
• Hose Compatibility Note: Designed to work across different hose ODs on one- and two-wire hoses (per MegaCrimp coupling design)

Ideal For

• Hydraulic hose assemblies needing a 90° female JIC connection
• Tight-routing installs where a 90-degree elbow reduces hose strain
• Service trucks and shops wanting fewer SKUs via MegaCrimp multi-OD fit
• One- and two-wire hydraulic hose applications requiring a secure crimp seal
• Repairs and builds using 1/2" hose ID with 3/4"-16 JIC thread connections
