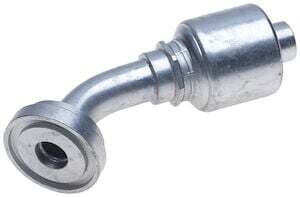

Hydraulic Fitting, 1/2"X1/2" Flange 45Deg

The 8G-8FL45 Hydraulic Fitting is a 45° flange hose-end coupling designed for secure, leak-resistant hydraulic connections while providing an angled routing option to reduce hose strain. Built for the MegaCrimp® system, it features the patented internal “C” insert that evenly distributes crimping forces to create a concentric seal. This design supports compatibility across different hose constructions and wall thicknesses, helping simplify inventory for one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 8G-8FL45
• Product Type: Hydraulic hose crimp fitting / flange coupling
• Connection Type: 45° flange
• Hose ID: 1/2"
• Flange Nominal Size: 1/2"
• Flange Outside Diameter: 1.19"
• Flange Thickness: 0.27"
• Length: 3.85"
• Cutoff Length: 2.37"
• Drop Length: 0.75"
• Coupling System: MegaCrimp® with patented “C” insert
• Performance Benefit: Even crimp force distribution for a concentric, leak-proof seal
• Compatibility Note: Designed to work across different hose constructions and wall thicknesses; supports one- and two-wire hose applications

Ideal For

• Hydraulic hose assemblies needing a 1/2" 45° flange connection
• Routing needs where a 45-degree angle helps reduce bend radius and hose stress
• Applications where a flange mount provides a secure, high-integrity interface
• Shops standardizing on MegaCrimp® fittings to simplify hose inventory
• One- and two-wire hose builds using 1/2" hose ID fittings
