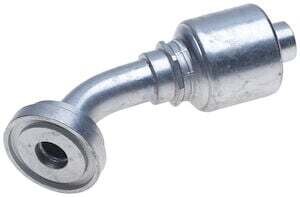

Hydraulic Fitting, 1/2"X3/4" O-Ring Flange 45Deg

The 8G-12FL45 Hydraulic Fitting (1/2" x 3/4" O-Ring Flange 45°) is a 45-degree O-ring flange hose fitting designed for hydraulic assemblies that need a secure, leak-resistant flange connection while improving hose routing in tighter spaces. Built for use with MegaCrimp® hose and coupling systems, it helps create a dependable crimped hose end with the added sealing reliability of an O-ring flange interface.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 8G-12FL45
• Product Type: Hydraulic fitting — 45° O-ring flange
• Hose ID (Side 1): 1/2 in
• Flange Nominal Size: 3/4 in
• Flange Outside Diameter: 1.50 in
• Flange Thickness: 0.27 in
• Overall Length: 4.13 in
• Drop Length: 1.02 in
• Cutoff Length: 2.65 in
• System Note: Compatible with MegaCrimp® crimp coupling systems

Ideal For

• Hydraulic hose builds needing a 45° flange connection for improved routing clearance
• Equipment using 3/4" O-ring flange ports where leak resistance is critical
• Replacing worn or leaking flange hose ends on mobile or industrial hydraulic systems
• Tight installations where a 45° hose end helps reduce hose strain and prevent kinks
