Hydraulic Fitting, 1/2"X3/8" Female Flat Face O-Ring 90Deg

Hydraulic Fitting, 1/2"X3/8" Female Flat Face O-Ring 90Deg

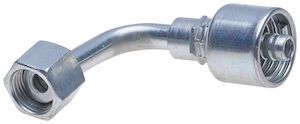

The 8G-6FFORX90S Hydraulic Fitting is a 90° female flat face O-ring fitting designed for secure, leak-resistant hydraulic hose connections in tight routing areas. Built for 1/2" hose ID with a 3/8" nominal fitting size, it uses an 11/16"-16 thread and is intended for use with MegaCrimp® coupling systems to help create a consistent, concentric seal across varying hose constructions and wall thicknesses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 8G-6FFORX90S
• Product Type: Hydraulic fitting (female flat face O-ring), 90°
• Fitting Size (Nominal): 3/8 in
• Hose ID: 1/2 in
• Thread Size: 11/16"-16
• Thread Pitch: 16
• Nut Hex Size: 22 mm
• Overall Length: 3.29 in
• Cutoff Length: 1.81 in
• Drop Length: 0.91 in
• MegaCrimp® Compatibility: Intended to support a leak-proof concentric seal across varying hose constructions and wall thicknesses

Ideal For

• Hydraulic hose assemblies needing a 90° female flat face O-ring connection
• Tight installations where a right-angle fitting improves routing and clearance
• Systems using 1/2" ID hose with a 3/8" nominal fitting connection
• Equipment repairs requiring an 11/16"-16 threaded hydraulic fitting
• Hose builds using MegaCrimp® coupling platforms for consistent crimp performance
