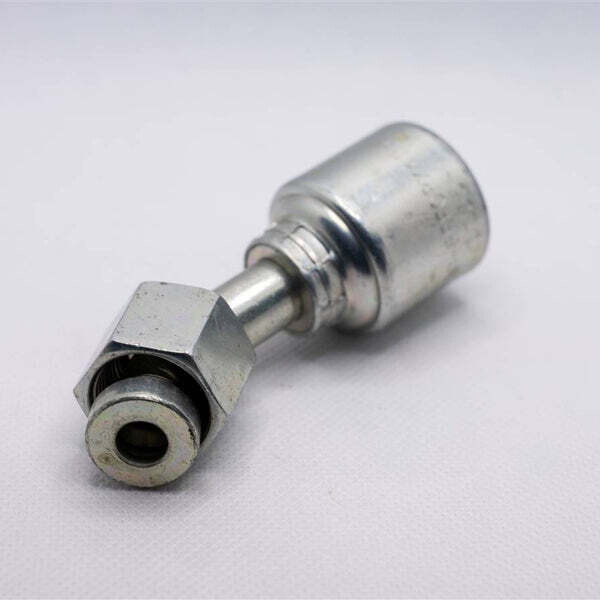

Hydraulic Fitting, 1/4"X1/4" Female Flat Face O-Ring 45Deg

The 4G-4FFORX45 Hydraulic Fitting is a 45° female flat-face O-ring MegaCrimp® coupling built for smooth routing and a leak-resistant crimp connection on hydraulic hose assemblies. The patented internal “C” insert helps deliver a concentric seal by evenly distributing crimping forces, and it’s designed to handle different hose constructions and wall thicknesses—so one coupling size can cover more hose variations (your parts bin just sighed in relief).

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-4FFORX45
• Product Type: Hydraulic MegaCrimp® coupling / fitting
• Fitting Style: Female Flat Face O-Ring 45°
• Hose ID Compatibility: 1/4 in
• Fitting Nominal Size: 1/4 in
• Thread Size: 9/16"-18
• Thread Pitch: 18
• Length: 2.57 in
• Nut Hex Size: 17 mm
• Cutoff Length: 39.2 in
• Drop Length: 0.39 in
• Seal / Design Feature: Patented internal “C” insert for even crimp-force distribution and a concentric seal
• Inventory Benefit: One size can accommodate multiple hose constructions and wall thicknesses (including one- and two-wire hoses)

Ideal For

• Hydraulic hose assemblies needing a 45° female flat-face O-ring connection
• Applications where a leak-resistant crimp seal is critical
• Routing hose in tighter spaces where a 45° angle reduces stress and improves alignment
• Shops looking to simplify coupling inventory across multiple hose types/constructions
