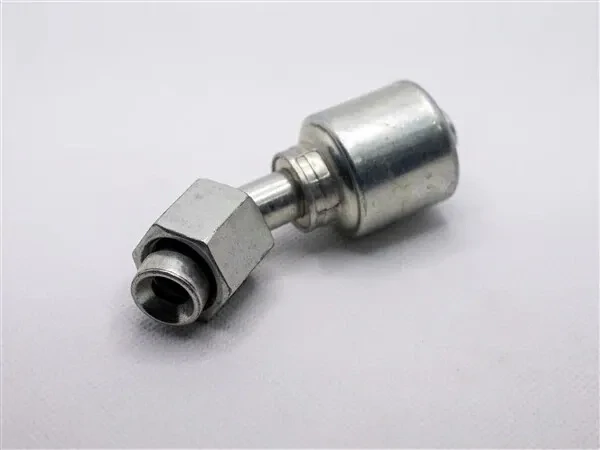

Hydraulic Fitting, 1/4"X1/4" Female Jic 45Deg

The 4G-4FJX45S Hydraulic Fitting is a 1/4" x 1/4" Female JIC 45° MegaCrimp® hose end built for clean routing and dependable sealing in hydraulic assemblies. Featuring the patented MegaCrimp® design with the internal “C” insert, it helps create a concentric, leak-resistant crimp seal across a range of hose constructions and wall thicknesses—making it easier to standardize fittings without playing the “why do we have six versions of the same thing” game.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-4FJX45S
• Product Type: Hydraulic hose fitting / crimp coupling
• Connection Type: Female JIC 45°
• Fitting Size: 1/4 in x 1/4 in
• Fitting Nominal Size: 1/4 in
• Hose ID 1: 1/4 in
• Thread Size 1: 7/16"-20
• Thread Pitch: 20
• Length: 2.74 in
• Nut Hex Size: 14 mm
• Drop Length: 0.39 in
• Cutoff Length: 43.7 in
• MegaCrimp® Feature: Patented internal “C” insert
  • Supports different hose constructions and wall thicknesses
  • Helps ensure even crimp-force distribution for a concentric seal
  • Can reduce inventory by allowing one size to fit multiple hose ODs (one- and two-wire hoses)

Ideal For

• Hydraulic hose assemblies needing a 1/4" Female JIC 45° hose end
• Applications where angled routing helps reduce hose stress and improve clearance
• Shops standardizing on MegaCrimp® to simplify fitting inventory
• One- and two-wire hose builds requiring consistent, leak-resistant crimp seals
• Anyone who prefers hydraulic systems that stay dry on the outside
