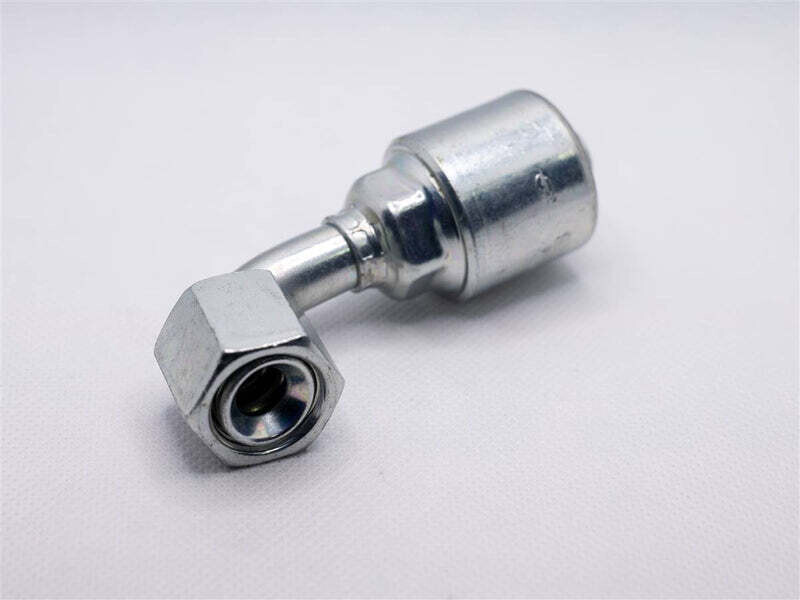

Hydraulic Fitting, 1/4"X1/4" Female Jic 90Deg

The 4G-4FJX90M Hydraulic Fitting is a MegaCrimp® 90° female JIC coupling built for compact hydraulic routing where you need a clean turn without kinking the hose. With the patented internal “C” insert that helps distribute crimping forces evenly for a concentric seal, it’s designed to work across different hose constructions and wall thicknesses—so the only thing turning is the fitting, not your wrench hand after the third re-crimp.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-4FJX90M
• Brand / Series: MegaCrimp®
• Product Type: Hydraulic crimp coupling / 90° female JIC fitting
• Angle: 90°
• Fitting Size: 1/4″ hose x 1/4″ Female JIC
• Hose ID 1: 1/4″
• Fitting Nominal Size: 1/4″
• Thread Size 1: 7/16″-20
• Thread Pitch: 20
• Nut Hex Size: 14 mm
• Cutoff Length: 1.46″
• Drop Length: 1.26″
• Overall Length: 2.48″
• Seal Design: Patented internal “C” insert for even crimp force distribution and a concentric seal
• Compatibility Note: Designed to accommodate different hose constructions and wall thicknesses on one- and two-wire hoses

Ideal For

• Building or repairing hydraulic hoses using MegaCrimp® systems
• Tight hydraulic layouts needing a 90° turn with a female JIC connection
• Equipment requiring 1/4″ hose ID with 7/16″-20 JIC threads
• Hydraulic applications where leak resistance and consistent crimp performance matter
