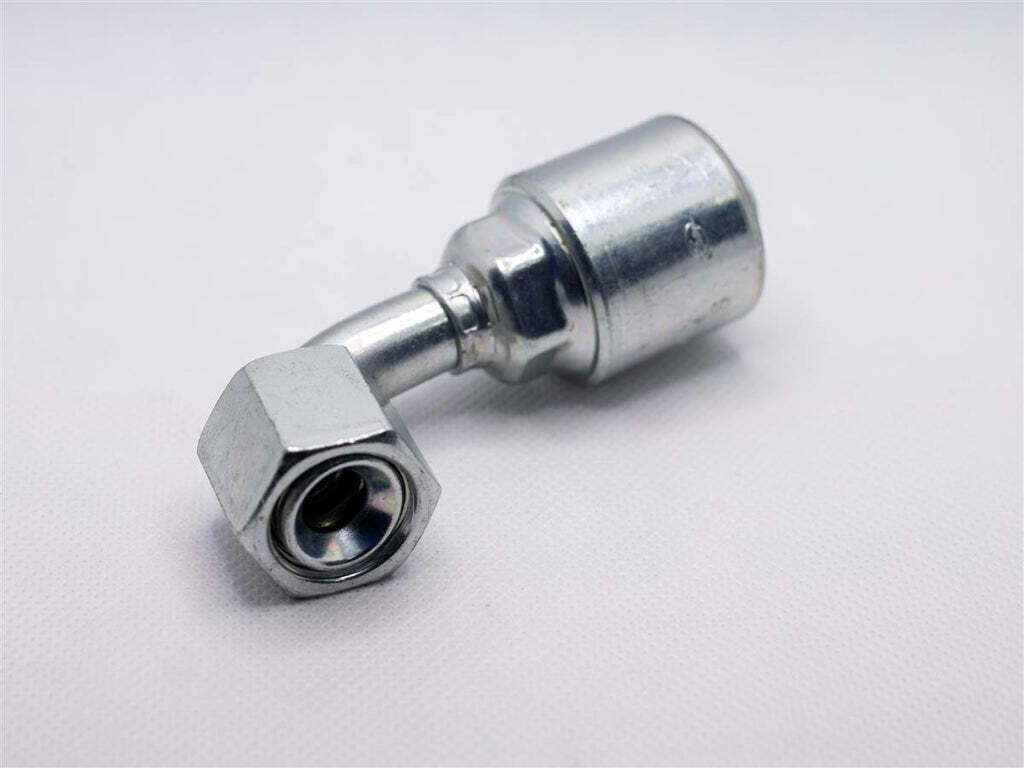

Hydraulic Fitting, 1/4"X1/4" Female Jic 90Deg

The 4G-4FJX90S Hydraulic Fitting is a 1/4" female JIC 90° fitting designed to help route hydraulic lines neatly in tight spaces while maintaining a secure, leak-resistant connection. Made to pair with MegaCrimp® coupling systems, the patented “C” insert concept helps create a concentric crimp seal by distributing crimp forces evenly across different hose constructions and wall thicknesses—so you can keep builds consistent without stocking half the warehouse.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-4FJX90S
• Product Type: Hydraulic fitting — Female JIC 90°
• Coupling System: Compatible with MegaCrimp® couplings featuring the patented “C” insert for even crimp force distribution and concentric sealing
• Fitting Nominal Size: 1/4"
• Hose ID: 1/4"
• Thread Size: 7/16"-20
• Thread Pitch: 20
• Length: 2.48"
• Cutoff Length: 1.46"
• Drop Length: 0.83"
• Nut Hex Size: 14 mm

Ideal For

• Hydraulic hose assemblies needing a 1/4" female JIC connection with a 90° turn
• Compact routing where a 90° fitting reduces hose strain and improves fitment
• Shops standardizing on MegaCrimp® components for consistent crimp sealing
• High-pressure lines where you want tidy routing—and zero surprise drips
