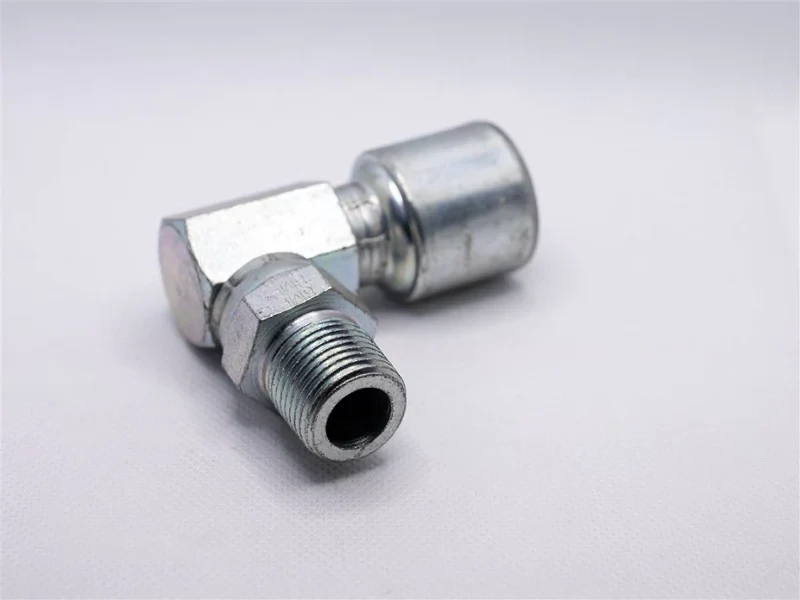

Hydraulic Fitting, 1/4"X1/4" Male Pipe 90 Degree Block

The 4G-4MPX90 hydraulic fitting is a 90° male pipe “block” style MegaCrimp® coupling designed for compact routing and a dependable crimped connection. MegaCrimp’s patented internal “C” insert helps form a concentric, leak-resistant seal by distributing crimp forces evenly across different hose constructions—so you can make that tight 90° turn without turning your shop floor into a slip-n-slide.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-4MPX90
• Product Type: Hydraulic hose crimp fitting / coupling
• Connection Type: Male Pipe, 90° Block
• Fitting Nominal Size: 1/4 in
• Hose ID (Hose ID 1): 1/4 in
• Thread Size: 1/4"-18
• Thread Pitch: 18
• Nut Hex Size: 11/16 in
• Stem Hex Size: 11/16 in
• Overall Length: 1.75 in
• Cutoff Length: 0.72 in
• Drop Length: 1.62 in
• Seal / Crimp Design: MegaCrimp® patented “C” insert for even crimp force distribution and concentric seal
• Compatibility Note: Designed to accommodate different hose constructions and wall thicknesses, helping reduce coupling inventory across multiple hose ODs (within the MegaCrimp system)

Ideal For

• Hydraulic hose assemblies needing a 1/4" male pipe connection with a compact 90° block fitting
• Tight installs where straight fittings don’t fit (and forcing it isn’t a strategy)
• Systems where you want a leak-resistant crimp seal and consistent performance
• Repairs where “close enough” is how leaks start, not how jobs finish
