Hydraulic Fitting, 1/4"X3/8" Female Flat Face O-Ring 90Deg

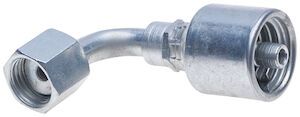

The 4G-6FFORX90M Hydraulic Fitting is a 90° female flat-face O-ring MegaCrimp® coupling designed for a dependable, leak-resistant crimp connection on hydraulic hose assemblies. Its patented internal “C” insert helps create a concentric seal by evenly distributing crimping forces, and it’s engineered to work across different hose constructions and wall thicknesses—so your inventory can stay lean instead of multiplying like rabbits in spring.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-6FFORX90M
• Product Type: Hydraulic MegaCrimp® coupling / fitting
• Fitting Style: Female Flat Face O-Ring 90°
• Hose ID Compatibility: 1/4 in
• Fitting Nominal Size: 3/8 in
• Thread Size: 11/16"-16
• Thread Pitch: 16
• Length: 2.5 in
• Nut Hex Size: 22 mm
• Cutoff Length: 1.47 in
• Drop Length: 1.5 in
• Seal / Design Feature: Patented internal “C” insert for even crimp-force distribution and a concentric seal
• Inventory Benefit: One size can accommodate multiple hose constructions and wall thicknesses (including one- and two-wire hoses)

Ideal For

• Hydraulic hose assemblies needing a 90° female flat-face O-ring connection
• Applications where leak resistance and a consistent crimp seal are priorities
• Installations with tight routing where a 90° turn keeps hose runs cleaner
• Shops aiming to reduce coupling SKUs while covering multiple hose types/constructions
