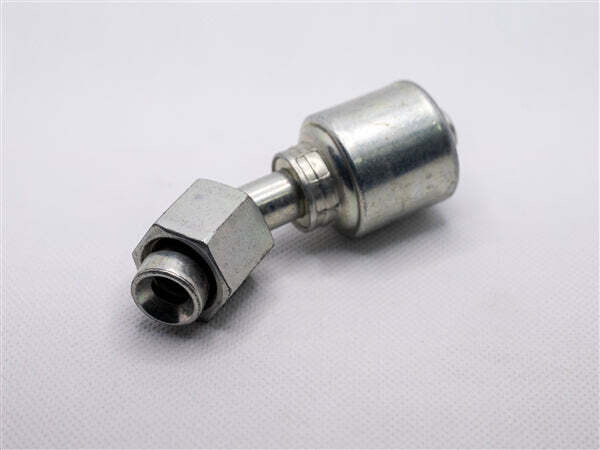

Hydraulic Fitting, 1/4"X3/8" Female JIC 45Deg

The 4G-6FJX45 Hydraulic Fitting is a female JIC 45° MegaCrimp® coupling designed for reliable, leak-resistant hydraulic connections in tight routing situations. Its patented MegaCrimp® design uses an internal “C” insert to help accommodate different hose constructions and wall thicknesses while distributing crimp forces evenly to form a strong, concentric seal—meaning fewer surprises after crimping (and fewer “who left a puddle under the machine?” conversations).

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-6FJX45
• Product Type: Hydraulic fitting / MegaCrimp® coupling
• Connection Type: Female JIC 45°
• Hose ID 1: 1/4 in
• Fitting Nominal Size: 3/8 in
• Thread Size 1: 9/16"-18
• Thread Pitch: 18
• Nut Hex Size: 11/16 in
• Overall Length: 2.73 in
• Cutoff Length: 1.71 in
• Drop Length: 0.43 in
• MegaCrimp® Design: Patented internal “C” insert helps fit varying hose constructions/wall thicknesses and promotes even crimp force distribution for a concentric, leak-resistant seal
• Inventory Benefit: One coupling size can accommodate multiple hose ODs on one- and two-wire hoses (less shelf clutter, more shelf sanity)

Ideal For

• Hydraulic hose assemblies needing a female JIC 45° connection
• Applications using 1/4" hose ID with 3/8" nominal fitting size
• Builds where a leak-resistant crimp seal is a priority
• Shops managing multiple hose constructions and wanting more inventory flexibility
• Tight routing situations where the 45° angle helps keep hoses from doing gymnastics
