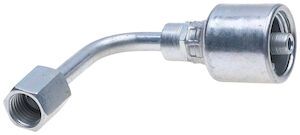

Hydraulic Fitting, 1/4"X3/8" Female JIC 90Deg

The 4G-6FJX90L Hydraulic Fitting is a MegaCrimp® 90° female JIC coupling designed for tight routing where a straight fitting just won’t behave. Built with the patented internal “C” insert that helps evenly distribute crimping forces for a concentric seal, it’s made to perform across different hose constructions and wall thicknesses—so the bend is in the fitting, not in your patience.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-6FJX90L
• Brand / Series: MegaCrimp®
• Product Type: Hydraulic crimp coupling / 90° female JIC fitting
• Angle: 90°
• Fitting Size: 1/4″ hose x 3/8″ Female JIC
• Hose ID 1: 1/4″
• Fitting Nominal Size: 3/8″
• Thread Size 1: 9/16″-18
• Thread Pitch: 18
• Nut Hex Size: 19 mm
• Cutoff Length: 1.7″
• Drop Length: 2.13″
• Overall Length: 2.73″
• Seal Design: Patented internal “C” insert for even crimp force distribution and a concentric seal
• Compatibility Note: Designed to accommodate different hose constructions and wall thicknesses on one- and two-wire hoses

Ideal For

• Building or repairing hydraulic hoses using MegaCrimp® systems
• Tight hydraulic layouts needing a 90° turn with a female JIC connection
• Equipment requiring 1/4″ hose ID with 9/16″-18 JIC threads
• Hydraulic applications where leak resistance and consistent crimp performance matter
