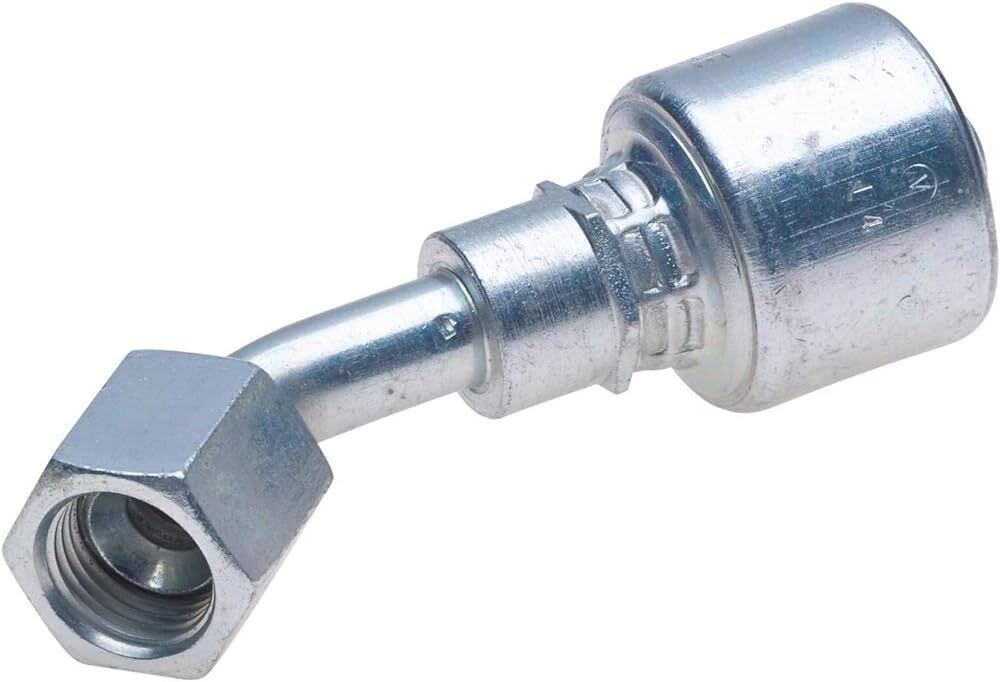

Hydraulic Fitting, 1/4"X5/16" Female JIC 45Deg

The 4G-5FJX45 Hydraulic Fitting (1/4" x 5/16" Female JIC 45°) is a MegaCrimp® hydraulic hose coupling designed for a reliable, leak-resistant crimped connection where a 45-degree angled Female JIC end is needed for routing and clearance. Its patented internal “C” insert helps accommodate different hose constructions and wall thicknesses while distributing crimp forces evenly to form a concentric seal, helping reduce inventory by allowing one size to fit a range of hose ODs on both one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-5FJX45
• Product Type: MegaCrimp® hydraulic hose coupling / fitting
• Connection Type: Female JIC 45°
• Hose ID 1: 1/4"
• Fitting Nominal Size: 5/16"
• Thread Size 1: 1/2"-20
• Thread Pitch: 20
• Nut Hex Size: 5/8"
• Overall Length: 2.56 in
• Cutoff Length: 1.54 in
• Drop Length: 0.43 in
• Seal / Performance Feature: Patented “C” insert for even crimp force distribution and a concentric, leak-proof seal
• Hose Compatibility Note: Designed to work across different hose constructions and wall thicknesses, including one- and two-wire hoses (varies by hose OD)

Ideal For

• Crimping hose assemblies needing a 45° Female JIC connection for tighter routing
• Hydraulic lines where leak resistance and consistent crimp performance matter
• Hose shops standardizing couplings that fit multiple hose OD ranges
• Repairs and builds using 1/4" ID hydraulic hose with 1/2"-20 JIC threads
