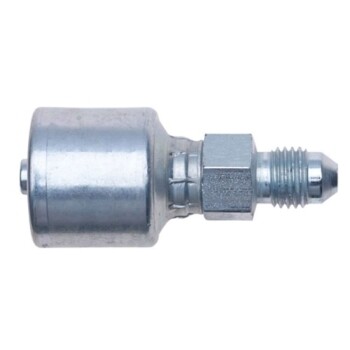

Hydraulic Fitting, 1/4"X5/16" Male JIC

Hydraulic Fitting, 1/4"X5/16" Male JIC

The 4G-5MJ Hydraulic Fitting is a MegaCrimp® male JIC coupling designed for secure, leak-resistant hydraulic hose assemblies. Engineered with the patented “C” insert, this fitting evenly distributes crimping forces to create a concentric seal, allowing compatibility with varying hose constructions and wall thicknesses. Built to simplify inventory while delivering consistent sealing performance, it’s a dependable solution for hydraulic systems that demand precision.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-5MJ
• Product Type: MegaCrimp® Male JIC Hydraulic Fitting
• Hose ID Compatibility: 1/4 in
• Fitting Nominal Size: 5/16 in
• Thread Size: 1/2"-20
• Thread Pitch: 20
• Overall Length: 2.19 in
• Cutoff Length: 1.16 in
• Stem Hex Size: 14 mm
• Connection Type: Male JIC (37° Flare)
• Design Feature: Patented “C” Insert for even, concentric crimping force
• Application: One- and two-wire hydraulic hoses

Ideal For

• Fabricating hydraulic hose assemblies
• Agricultural and industrial hydraulic systems
• Applications requiring a JIC 37° flare connection
• Shops stocking fittings compatible with multiple hose wall thicknesses
• High-pressure systems where a consistent, leak-free seal is essential
