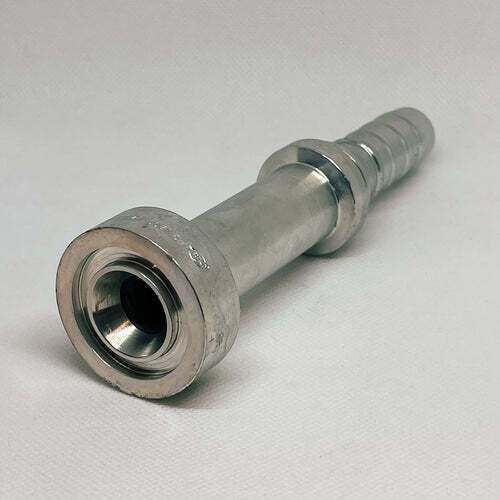

Hydraulic Fitting, 1"X1-1/4" CAT Flange

The 16GS-20FLC Hydraulic Fitting, 1" × 1-1/4" CAT Flange is a high-performance Gates® GlobalSpiral™ coupling designed for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. Built with a two-piece, no-skive design to speed assembly and reduce contamination risk, it features a CAT flange connection and is finished with TuffCoat plating for enhanced corrosion resistance in demanding hydraulic environments.

Country of Origin: Varies by production batch

Key Features / Specifications

• Model / SKU: 16GS-20FLC
• Brand / Series: Gates GlobalSpiral™
• Product Type: Hydraulic hose coupling / fitting (no-skive)
• Connection Style: CAT flange
• Hose ID: 1"
• Flange Size: 1-1/4"
• Flange Thickness: 0.56"
• Overall Length: 6.1"
• Design: Two-piece, no-skive (reduces assembly time, labor, odor, and fabrication errors)
• Pressure Capability (series): GlobalSpiral thread ends rated up to 6,000 psi (application dependent)
• Corrosion Protection: TuffCoat plating (enhanced corrosion resistance)

Ideal For

• Building or repairing high-pressure spiral-wire hydraulic hose assemblies
• Applications needing a 1" hose ID coupling with 1-1/4" CAT flange connection
• Shops wanting faster assembly with a no-skive coupling design
• Equipment operating in harsh environments where improved corrosion resistance matters
• High-impulse hydraulic systems where durable couplings help reduce downtime
