Hydraulic Fitting, 1"X1-1/4" Code 62 Flange

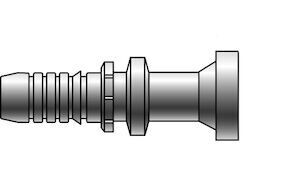

The 16GS-20FLH Hydraulic Fitting is a Gates® GlobalSpiral® flange coupling designed for extremely high-pressure, high-impulse spiral-wire hydraulic hose assemblies. Its two-piece, no-skive design speeds assembly by eliminating skiving—reducing labor, time, odor, potential errors, and contamination risk in fluid power systems. Built for demanding hydraulic environments, GlobalSpiral thread ends can handle working pressures up to 6,000 psi, and TuffCoat plating delivers enhanced corrosion resistance for longer service life.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16GS-20FLH
• Brand / Series: Gates® GlobalSpiral®
• Product Type: Hydraulic hose coupling / flange fitting
• Design: Two-piece, no-skive
• Pressure Capability: Up to 6,000 psi (GlobalSpiral thread ends)
• Corrosion Protection: TuffCoat plating for enhanced corrosion resistance
• Hose ID: 1"
• Flange Type / Size: Code 62 flange, 1-1/4" nominal size
• Flange Thickness: 0.41"
• Flange Outside Diameter: 2.13"
• Overall Length: 4.92"
• Cutoff Length: 2.69"

Ideal For

• Building high-pressure, high-impulse hydraulic hose assemblies
• Shops wanting faster assembly with a no-skive, two-piece coupling design
• Applications needing Code 62 flange connections (1" hose ID × 1-1/4" flange)
• Systems where reducing contamination risk and fabrication errors is important
• Harsh environments benefiting from TuffCoat corrosion resistance
