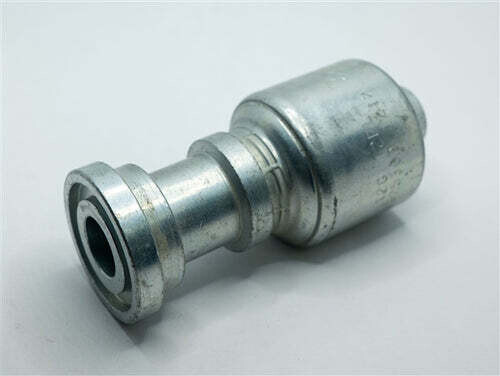

Hydraulic Fitting, 1"X1-1/4" Flange

The 16G-20FL Hydraulic Fitting (1" x 1-1/4" Flange) is a flange-style hydraulic hose fitting built for reliable connections in demanding hydraulic applications. Designed for use with MegaCrimp® coupling technology, it supports a leak-proof crimp seal using the patented “C” insert, which helps accommodate different hose constructions and wall thicknesses while distributing crimping forces evenly to form a concentric seal—helping simplify inventory by allowing one size to fit multiple hose ODs across one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16G-20FL
• Product Type: Hydraulic flange fitting
• Coupling System: MegaCrimp®
• Seal Design: Patented “C” insert for even crimp-force distribution and concentric seal
• Hose ID: 1 in
• Flange Nominal Size: 1-1/4 in
• Flange Outside Diameter: 2 in
• Flange Thickness: 0.32 in
• Overall Length: 4.13 in
• Cutoff Length: 1.9 in

Ideal For

• Hydraulic hose assemblies requiring a 1-1/4" flange connection
• Applications needing a consistent, leak-resistant crimp seal
• Shops standardizing on MegaCrimp® to simplify fitting and hose inventory
• Builds using 1" ID hose where specified flange dimensions and overall length are required
