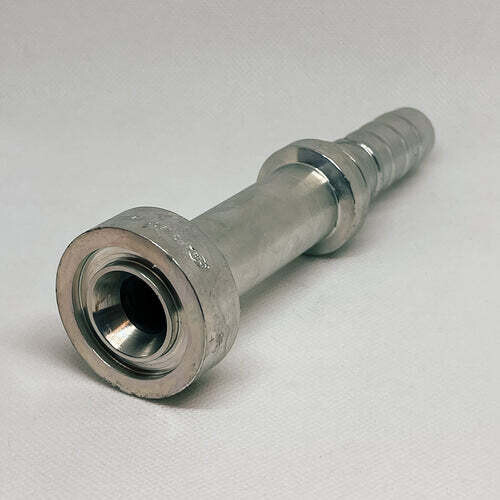

Hydraulic Fitting, 1"X1" CAT Flange

The 16GS-16FLC Hydraulic Fitting, 1" x 1" CAT Flange is a Gates® GlobalSpiral™ flange coupling engineered for extremely high-pressure, high-impulse hydraulic hose applications. Built with a two-piece, no-skive design, it allows faster, cleaner hose assembly while reducing labor, errors, and system contamination. Rated for working pressures up to 6,000 PSI, it features TuffCoat® plating for enhanced corrosion resistance—exceeding SAE ASTM B117 performance—making it well suited for demanding hydraulic environments.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16GS-16FLC
• Brand / Series: Gates® GlobalSpiral™
• Product Type: Hydraulic flange coupling
• Connection Style: CAT flange
• Hose ID: 1"
• Flange Nominal Size: 1"
• Flange Outside Diameter: 1.88"
• Flange Thickness: 0.56"
• Overall Length: 6.10"
• Cutoff Length: 3.87"
• Design: Two-piece, no-skive coupling
• Pressure Rating: Up to 6,000 PSI working pressure
• Finish: TuffCoat® plated (enhanced corrosion resistance)

Ideal For

• High-pressure, high-impulse hydraulic systems using spiral-wire hose
• Applications where no-skive assembly saves time and reduces contamination
• CAT-style flange connections requiring 1" hose and 1" flange size
• Equipment operating in harsh environments where corrosion resistance is critical
• Custom hydraulic hose assemblies needing reliable Gates® GlobalSpiral™ performance
